نام محصول:
العه قدرت
نام انگلیسی:
Power inductor
برند:
Suzhou TOPRUN Electric Equipment Co., Ltd
مشخصات:

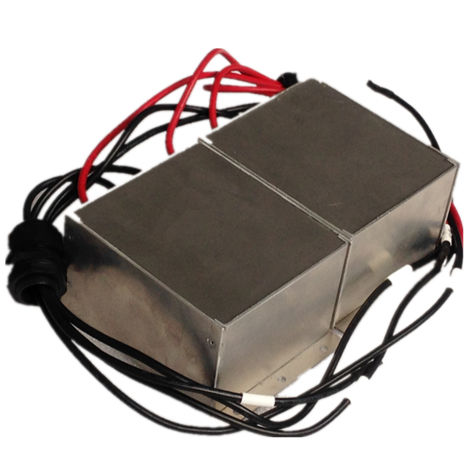

Product Name: Boost Input Inductor
Inductance Rate: 1200μH (1V, 1kHz, ± 10%, at room temperature, TH2817 LCR digital bridge)
Inductance Balance: ≤5%
Temperature rise: 65K (rated current test)
Pressure Ratings: Coil testing core coil (lead) on the housing AC2.5KV 60s 50Hz 3mA interlayer pulse 1500Vdc
Noise: ≤60dB
DC resistance: 40mΩ MAX (25 ℃)
Cooling: AN
Insulation resistance: ≥100MΩ (DC1000V)
Insulation grade: H grade
Protection class: IP54
Weight: about 7KG
Rotation: 55 turns
RoHS (Y / N): Y
توضیحات:
Electrical characteristics
power
Primary current
16 A
