نام محصول:
اثر سالن جوی استیک
نام انگلیسی:

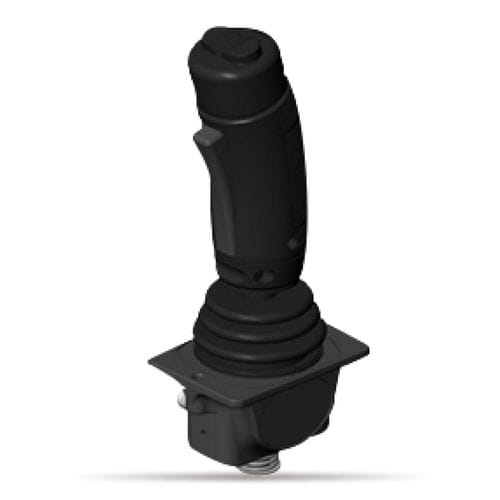

Hall effect joystick JH80
برند:
SENTOP by Shanghai Sibo M&E Co., Ltd.
مشخصات:
JH80 Series Hall Effect Joystick
– Hall effect joystick
– Firm and reliable structure
– Various outout signals
– With rubber cover(optional
– With spring return device
General Specifications
– Operating angle: Approx. +30
– Operating force: Approx. 1.15 – 1.85 Nm
– Mechanical life expectancy: Approx. 10000.000Operating/Storage temperature range: -40C~+ 85C
– Protection grade: IP67 (Electrical parts)
Electrical specifications (switch)
– Push Button Switch
– Rating: 30V.D.C./ 0.1A
– Electrical life expectancy: Approx. 1000,000Insulation resistance: =1000MQ (500V.D.C)Dielectric strength: 1min (1000V.AC)
– Electrical specifications (Hall effect potentiometerInput voltage: 5V+10% 9-30V 15-30V 15-30Voutput signal: 0-100%VCC 0-5V 0~10V 4-20mA
– Load resistance:=100KQ =100KQ =100K <6000
– Output deviation at both ends: <1%VCC -50mV <50mV -0.05mA
– Current consumption (no-load): <16mA <25mA <25mA <35mA
– Independent linearity tolerance:+2%
– Resolution.4096 (12 bits)
Special Specifications
– 10V applied, 0-10V output, 3.3V applied, 0-5V output and PWM
– SSIRS485,CANopen, USB,Modbus, wireless conmunication(LoRa)other digital signal, bus signal, etc.
– Customized knob, with push button switch (with light is optional), etc
– With customer-specific connectors, with protection module
JH80 can be customized, please contact us at trade1@sakae.cn
توضیحات:
Technology
single-axis, Hall effect, analog, switch
Applications
for remote control, for utility vehicles, for off-highway vehicles, for aerial work platform
Other characteristics
with buttons, rugged, IP67, with switch, CAN bus, PWM, spring-return, with dead-man switch
