نام محصول:
اثر سالن جوی استیک
نام انگلیسی:
Hall effect joystick C5
برند:
Haimooo Electronic Controls Co.,ltd
مشخصات:
Position: Home>Single axis joysticks>C5 Paddle Joystick
Product Detail

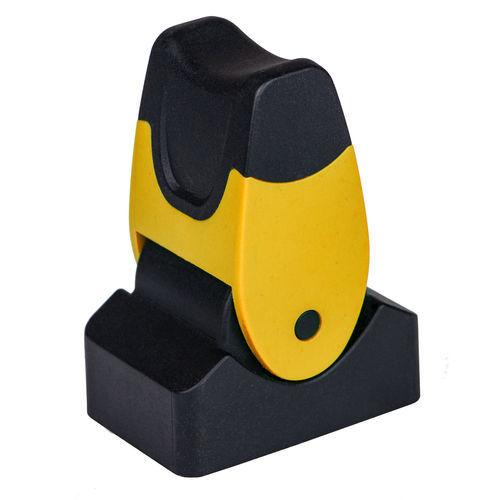

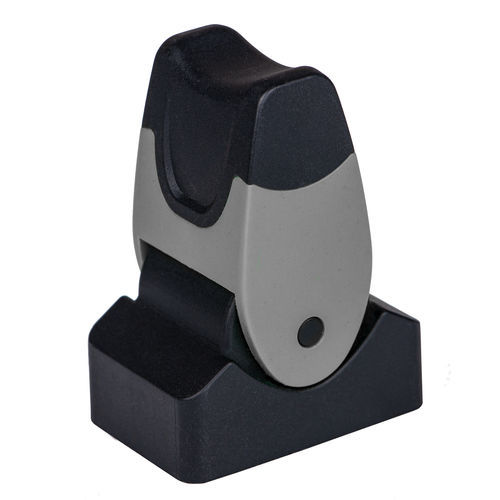

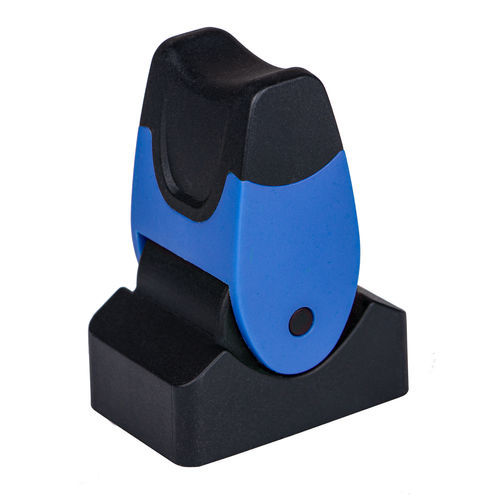

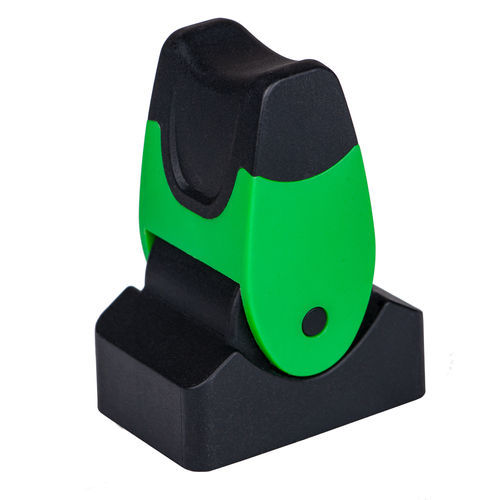

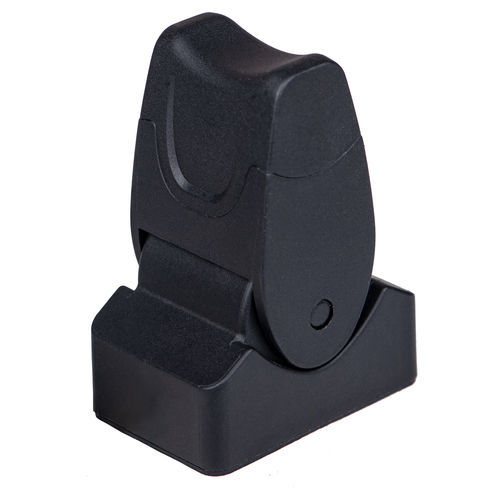

C5 Paddle Joystick
C5 Paddle Joystick
Reference price ：
￥0.00
Next： FJ12 fingertip joystick
Technical data
1. Product Features
Ergonomic design, fingertip-operated

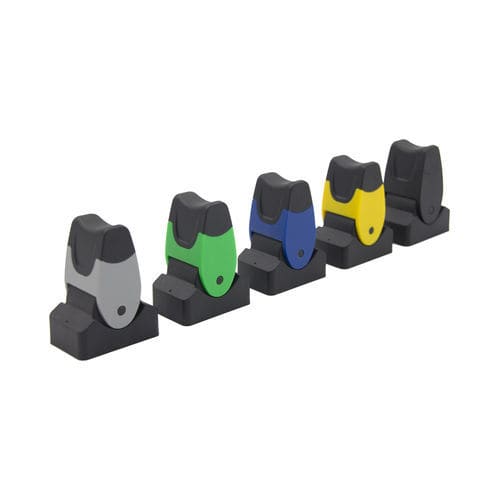

Different paddle colors
Compact design, easy to mount on the top of panel
Side-by-side mount available, saving space
Non-contacting hall effect technology, long lifetime
Design for severe environment, IP67 (electronics)
2. Market Focus
Industrial remote controller
Control panel
Armrest box
3. Technical Specifications
3.1 Mechanical Data
Travel angle: ±30°
Operating force: 1.6-3.5N
Maximum allowable force: 30N
mechanical life: 3 million cycles
Weight: 40g
3.2 Electrical Data
Supply voltage: 5.0±0.5vdc
Power current consumption: 10KΩ
Insulation resistance: >1000MΩ
EMC: 100V/M
3.3 Environmental Data
Operating temperature: -40℃-+70℃
Storage temperature: -40℃-+85℃
Protection class: IP67 (only for electronics）
توضیحات:
Technology
Hall effect, single-axis, analog, 2-axis, compact, digital
Applications
for remote control, for off-highway vehicles
Other characteristics
IP67, multifunction, SAE J1939, panel-mount, fingertip, CAN bus, thumbwheel, spring-return, CANopen, with integrated control handle, with armrest, with ball handle, with interlock system
