نام محصول:
اتصالات گاز
نام انگلیسی:

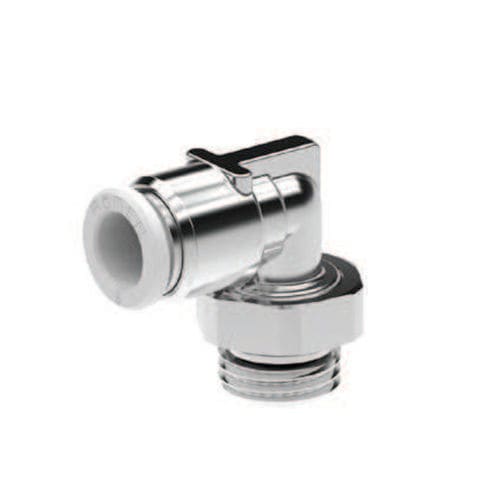

Gas fitting 38 series
برند:
Genn Dih
مشخصات:
ELSA quick connector tin is particularly applicable to corrosive liquid and gaseous media under severe operating conditions. FDA compliant FKM seals. Are also available to provide compliance with FDA and KTW approved EPDM seals, especially for medical, analytical, drinking water and food industry applications.
Body material AISI 316L

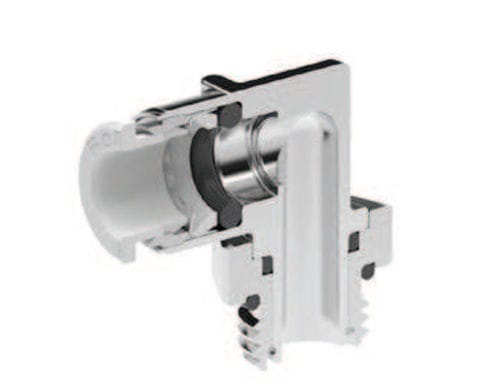

thread attached O-ring seal
Operating pressure PN 20
FDA-approved parts
KTW certification
NSF certification
توضیحات:
Applications
for gas
Attachment
ring, quick, push-in
Configuration
T, 90° angle
Material
EPDM, stainless steel, for liquid products
Other characteristics
with O-ring, for the food industry
Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)
Operating pressure
20 bar(290.08 psi)
