نام محصول:
اتصالات پنوماتیک

نام انگلیسی:

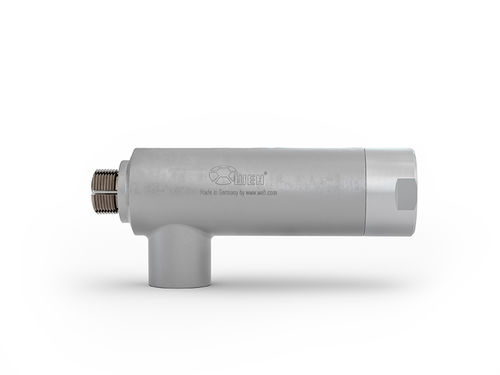

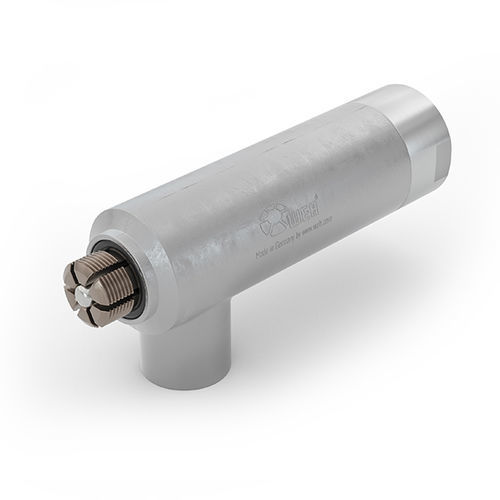

Pneumatic fitting WEH® TW17P

برند:
WEH GmbH Verbindungstechnik

مشخصات:
The WEH® TW17 Quick Connector is designed for sealing standardized internal thread applications. The higher the test pressure the tighter the WEH® Connector will clamp itself into the thread of the test piece and provides a pressure-tight connection in seconds. The front o-ring reliably seals the connection and no additional clamping devices are required. Time-consuming and expensive testing devices are eliminated.

The TW17 quick connector is available with different actuations:
Manually with hand lever, pneumatically with valve head and pneumatically for external manual, semi or fully automatic control systems.
Special versions, e.g. connectors in longer or shorter versions, as a plug or with hydraulic actuation etc. are possible.

توضیحات:
Applications
pneumatic

Attachment
quick

Material
stainless steel

Other characteristics
high-pressure, for pressure testing, for vacuum testing, internal thread, pneumatic actuation

Diameter
Min.: 0.13 inMax.: 1 in

Operating pressure
Min.: 0 bar(0 psi)Max.: 350 bar(5,076.32 psi)
