نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting GT
برند:
WAMGROUP S.p.A
مشخصات:

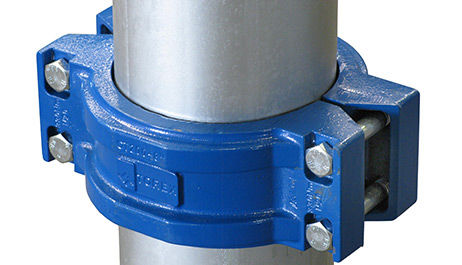

GT Couplings are designed to join together two plain pipe ends on the same horizontal axis in a safe, quick and rigid way.

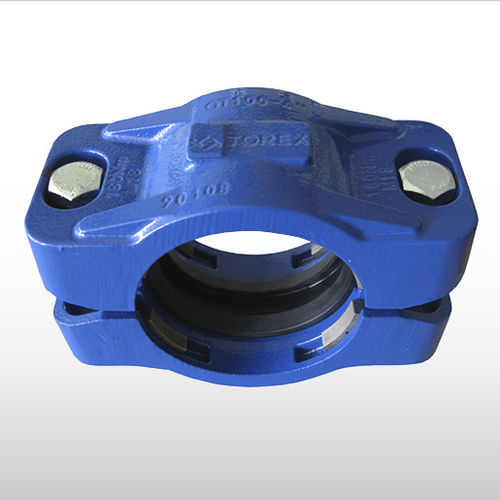

GT Pipe Couplings consist of two cast iron semi-casings with heavy-duty jaws set into the casing halves to secure the pipes together in a safe, quick and rigid way.
The two semi-casings are joined together by strong bolts and nuts positioned on the two ends.
Sealing is ensured by gaskets made from EPDM or food-grade SILICONE.
GT Couplings are designed to join together two plain pipe ends on the same horizontal axis in a safe, quick and rigid way. The jaws set into the casing ensure solid grip and prevent the pipes from pulling out.
• Operating temperature: -40 ~ 110 °C (-40 ~ 230 °F)
• Quick and easy to install
• Reduced installation costs as compared to welded junctions
• No pressure drop along pneumatic line
• No contamination due to silicone gasket
• Suitable for all pipe thicknesses
• GT coupling can be rotated to provide easy access to nuts and bolts
• Maintenance-free
توضیحات:
Applications
pneumatic
Attachment
quick
Material
EPDM, silicone, cast iron
Other characteristics
compact, flexible, heavy-duty, rigid, orientable

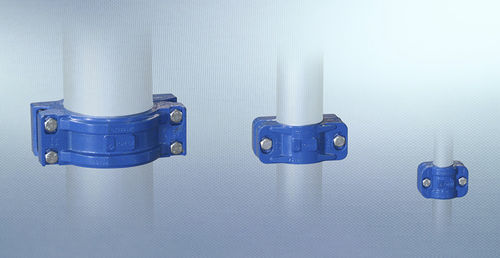

Diameter
Min.: 40 mm(1.575 in)Max.: 200 mm(7.874 in)
Operating pressure
Min.: -7.2 psiMax.: 102 psi
