نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

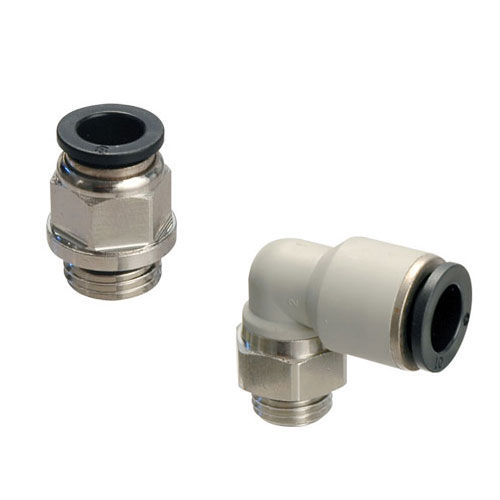

Pneumatic fitting HA series
برند:
UNIVER Group
مشخصات:
HA
Technopolymer Push-In Fittings
CHARACTERISTICS
Temperature-20 80 °C (based on the type of tube)
Fluidcompressed air, vacuum
Max pressure15 bar
Working pressure-0,99 -5-10 bar
Bodytechnopolymer
Fixing elementsnickel-plated brass with O-ring in NBR for parallel thread version (standard)
teflon coating for taper thread version (upon request)
Clampstainless steel
Release ringtechnopolymer
Application fieldspneumatic circuits
Recommended hosespolyamide PA 10.12, polyurethane Sh.A98, co-polyurethane Sh.55D
توضیحات:
Applications
pneumatic
Attachment
push-in
Material
plastic, technopolymer, NBR, brass, nickel-plated brass
Other characteristics
with O-ring
Diameter
Max.: 12 mm(0.472 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 15 bar(217.56 psi)Min.: 0 bar(0 psi)
