نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

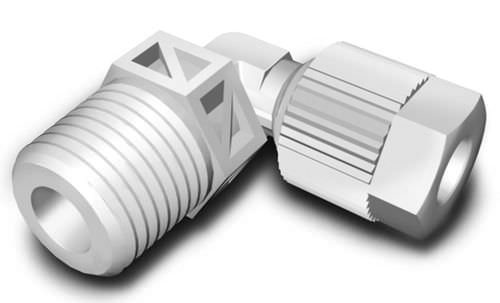

Pneumatic fitting PVDF series
برند:
SERTO
مشخصات:
for aggressive air, gases and liquids in an aggressive environment, e.g. in laboratories, process engineering, biotechnology, medical and laboratory technology
Characteristics, speciality
• easy and fast to install
• extensive product range
• high resistance to chemicals
Material
Polyvinylidenefluoride PVDF is especially resistant to corrosives and aliphatic, aromatic and chlorinated hydrocarbons, carboxylic acids, alcohol and mercaptanes hydrocarbons. PVDF is not resistant to alkaline amines, alkalis and alkaline metals.
higher pressure on request
Tubes to use
Tolerance complying tubes and hoses with clean surface and uniform wall thickness. See also chapter on tubes and hoses.
Tapered male threads
For sealing the male threads we recommend the PTFE tape AC 840/841 or the sealing stick “Plasto-Joint” AC 833.
FDA-Compliance
Polyvinylidene fluoride (PVDF) complies with the CFR 21 (Code of Federal Regulations), § 177.2510 of FDA (Food and Drug Administration, USA) and can be unsed in contact with food.
توضیحات:
Applications
pneumatic
Attachment
screw-in
Configuration
elbow
Material
plastic
Other characteristics
chemical-resistant, union
Diameter
Min.: 4 mm(0.157 in)Max.: 16 mm(0.63 in)
Operating pressure
10 bar(145.04 psi)
