نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting 301.06.1/8
برند:
Redfluid SL
مشخصات:

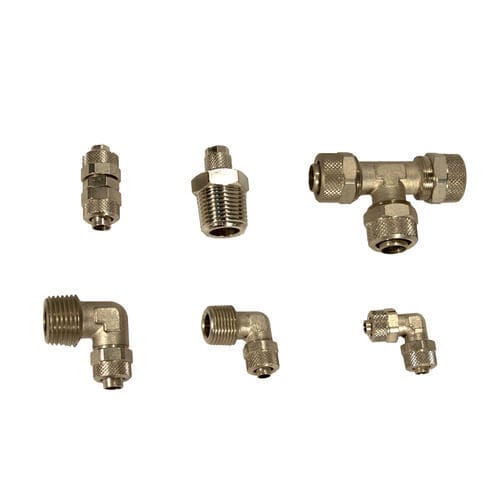

We have Automatic Fittings (Push-in) or Quick Fittings (Push-on).
A push-on fitting has an outer metal nut and a small inner shank. The tube fits and is tightened with the outer nut
On the other hand, in push-in fittings, the pipe goes into the pressure fitting and it will be an outer ring (usually made of red plastic) that holds the pipe without the need to tighten any nut.
We have both in brass or in stainless steel in a multitude of figures and shapes. Dimensions up to 16mm OD and in BSP, BSPT, NPT and metric connections.

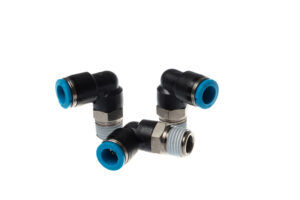

Push-in Automatic Fitting
The series of automatic fittings is the clearest expression of reliable and well-proven technology in pneumatic applications.

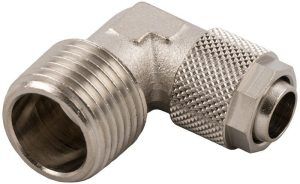

Push-on quick fitting
Push-on fittings take advantage of the proven technology to be able to connect plastic pipes with extreme safety.
They do not have O-rings and allow simple and reliable connections. The sealing is metallic and the connection is effortless thanks to the particular shape of the hose adaptor. The hexagon of the locking nut is always on top to facilitate mounting.
Connections
NPT (ANSI / ASME B1.20.1), BSP or Cylindrical GAS (ISO 7.1, BS 21, DIN 2999, ISO 228 A), BSPT (ISO 7.1, BS 21, DIN 2999), Metric ISO R / 262
Rings
Acetal Resin and clamp in 301 stainless steel. O-rings in NBR.
توضیحات:
Applications
pneumatic
Attachment
quick, push-in
Configuration
90° angle, cross
Norms
ISO, DIN, BSP, BSPT
Material
resin, nickel-plated brass, stainless steel, NBR
Other characteristics
with O-ring, NPT, automatic
Diameter
Max.: 16 mm(0.63 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 20 bar(290.08 psi)Min.: -0.99 bar(-14.36 psi)
