نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

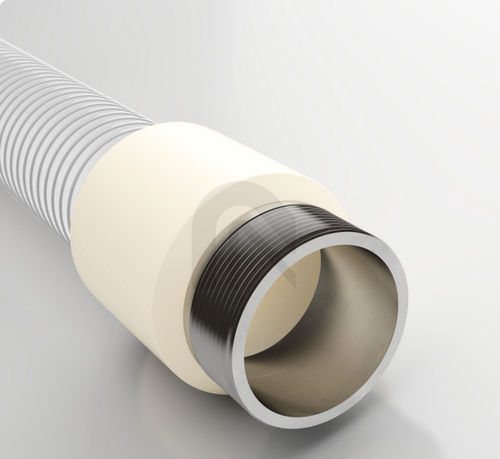

Pneumatic fitting Combiflex VA
برند:
Masterflex SE
مشخصات:
cast-on VA threaded socket with male thread to DIN ISO 228 for all Master-PUR Food hoses, food-safe EU 10/2011
Description, addition to product name – cast-on VA threaded socket with male thread to DIN ISO 228 for all Master-PUR Food hoses, food-safe EU 10/2011
Construction / Material
Specification of the connection solution – Connection thread is designed according to DIN ISO 228, Streamlined, Liquid-tight connection
Execution of the sprue / collar – made of specified material
Specification of the sprue / collar – approved for direct food contact according to EU Directive 1935/2004, 10/2011 and its latest amending Directives, Material complies with the food regulations of BfR XXXIX, PU cast-on section approved for direct food contact
Execution of the nozzle – hose threaded connector design, cast on, made of metal, external thread according to DIN ISO 228
Material of the nozzle – Stainless steel 1.4310
Properties
Chemical Properties – stainless, good resistance to chemicals, odourless and tasteless
Colour – white
Other – Dissipation of electrostatic charge by grounding connection between hose and fitting
Operating Temperature
Temperature Range – -40 to 90 °C
short-term maximum temperature – peaks to +125° C
Delivery Information
Delivery, type of production – Order-related production
توضیحات:
Applications
pneumatic
Attachment
screw-in
Material
polyurethane
Other characteristics
for the pharmaceutical industry, chemical-resistant, corrosion-resistant
Diameter
Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
