نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

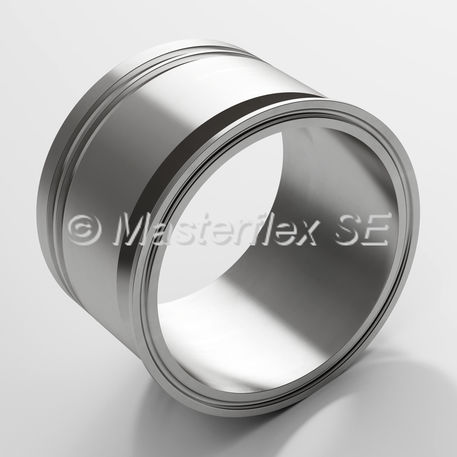

Pneumatic fitting Combiflex
برند:
Masterflex SE
مشخصات:

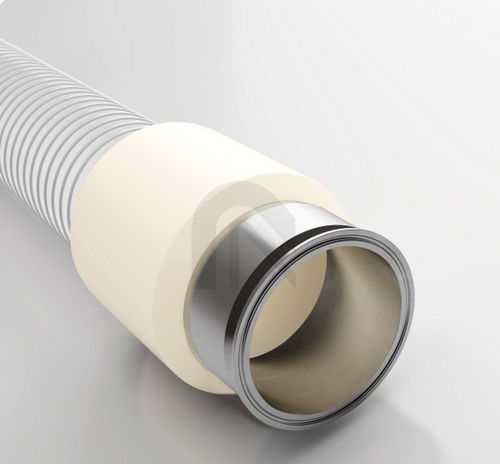

Cast-on clamp connection according to DIN 32676 Series A for all Master-PUR Food hoses, food-safe EU 10/2011
Specification of the connection solution – Streamlined, Liquid-tight connection
Execution of the sprue / collar – made of specified material
Specification of the sprue / collar – approved for direct food contact according to EU Directive 1935/2004, 10/2011 and its latest amending Directives, Material complies with the food regulations of BfR XXXIX, Material complies with the food regulations of DIN 32676 Series A
Execution of the nozzle – Property 4862, cast on, made of metal
Material of the nozzle – Stainless steel 1.4310
Design of the sealing ring – made of rubber
Material of the sealing ring – NBR
Properties
Chemical Properties – stainless, odourless and tasteless, good resistance to chemicals
Other – Dissipation of electrostatic charge by grounding connection between hose and fitting
Operating Temperature
Temperature Range – -40 to 90 °C
short-term maximum temperature – peaks to +125° C
Delivery Information
Delivery, type of production – Order-related production
Customizing Options
optional item modification (on request) – On request available as aseptic version according to DIN 11863-3, weldable or pressed, other materials
توضیحات:
Applications
pneumatic
Attachment
flange
Material
stainless steel
Other characteristics
chemical-resistant, corrosion-resistant, poppet
Diameter
Min.: 32 mm(1.26 in)Max.: 150 mm(5.906 in)
