نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

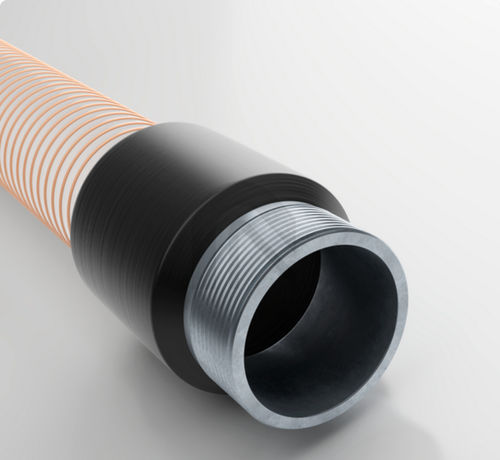

Pneumatic fitting Combiflex
برند:
Masterflex SE
مشخصات:
Cast-on threaded connection with external thread according to DIN ISO 228
Short Info
Description, addition to product name – Cast-on threaded connection with external thread according to DIN ISO 228
Construction / Material
Specification of the connection solution – Connection thread is designed according to DIN ISO 228, Streamlined, Liquid-tight connection
Execution of the sprue / collar – made of highly abrasion-resistant material
Execution of the nozzle – hose threaded connector design, cast on, made of metal, external thread according to DIN ISO 228
Properties
Chemical Properties – stainless, odourless and tasteless, good resistance to chemicals
Colour – black
Other – Dissipation of electrostatic charge by grounding connection between hose and fitting
Operating Temperature
Temperature Range – -40 to 90 °C
short-term maximum temperature – peaks to +125° C
Delivery Information
Delivery, type of production – Various nominal widths are available ex production, individual nominal widths also ex stock
توضیحات:
Applications
pneumatic
Attachment
screw-in
Material
polyurethane, aluminum
Other characteristics
chemical-resistant, abrasion-resistant, corrosion-resistant
Diameter
Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
