نام محصول:
اتصالات پنوماتیک
نام انگلیسی:

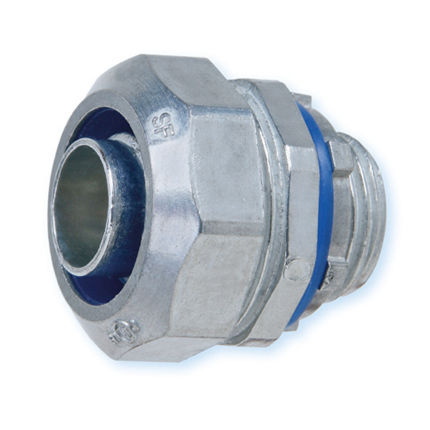

Pneumatic fitting HFC-Z series
برند:
Heyco
مشخصات:
For use with Nonmetallic Heyco-Flex™ I Electrical Conduit
Straight-Thru, NPT Hubs
FEATURES
– Cost effective die-cast zinc construction provides durability and resists rough environments.
– Liquid Tight when used with Heyco-Flex™ I Liquid Tight Conduit.
– Provide smooth connection, no sharp edges to strip wire.
– Suitable for outside, inside, and industrial uses including transformer connections, air conditioning, and heating.
– Suitable for use in both wet and dry location.
– Fit the most common sizes of nonmetallic liquid tight conduit.
– If using a tapped hole, Teflon® tape is needed on the threads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
– Supplied with locknut and plastic sealing ring.
– DFARS Compliant
QuickSpecs
Material Die cast zinc
Certifications Certified by Underwriters’ Laboratories for compliance with both Canadian and U.S. requirements under File E28430
توضیحات:
Applications
pneumatic
Attachment
screw-in
Material
plastic, die-cast zinc
Gender
male
Other characteristics
NPT, sealed
Diameter
Max.: 62.7 inMin.: 22.6 in
