نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting Heyco-Flex™
برند:
Heyco
مشخصات:
For use with Heyco-Flex™ I and II Conduit and Tubing
Straight-Thru, Snap-In and NPT Hubs
FEATURES
– One-piece solution with smooth internal surfaces provides for easier wire routing, protection, and installation.
– Easy permanent assembly: the installer twists the tubing over the connector ferrule.
– Unique locking fingers accommodate various panel thicknesses.
– All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification and testing.)
– Suitable for a wide array of electrical applications:
– Commercial and Industrial HVAC Systems
– Motorized Equipment
– Enclosed Power Sources
– Garage Door Openers
– Major Appliances
– Finishing collars available to neaten rough cut tubing ends.
– Assembly Tool available for assembling Quick Twist Fittings into HF1 and HF2 Conduit and Tubing.

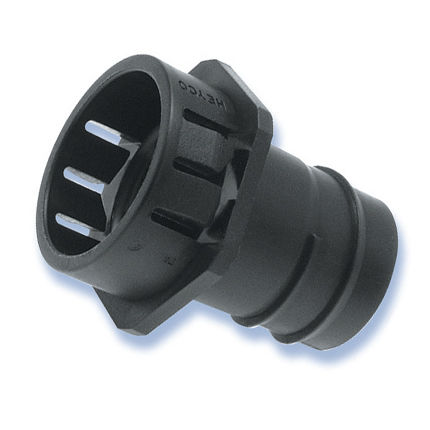

Snap-in Hubs
– Snap-in Fittings are UL recognized for use with Heyco-Flex II Tubing.
– Suitable for dry location only.

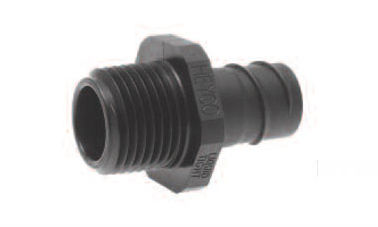

NPT Hubs
– NPT threaded fittings are UL approved for use with Heyco-Flex I & II Conduit and Tubing.
– If using a tapped hole, Teflon® tape is needed onthethreads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
– Locknuts not included. To order nylon or metal locknuts separately, See metal locknuts: NPT, PG, and Metric and Nylon locknuts: NPT, PG, and Metric.
QuickSpecs
Material Nylon 6/6
Certifications – Recognized under the Component Program of Underwriters’ Laboratories File E121095 (Snap-in Hubs)
UL Listed under Underwriters’ Laboratories File E28430
Flammability Rating 94V-2
توضیحات:
Applications
pneumatic
Attachment
threaded, quick, barbed, snap-in
Material
nylon, Teflon®
Other characteristics
NPT
Diameter
13.7 mm, 22.2 mm, 28.2 mm(0.539 in, 0.874 in, 1.11 in)
