نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting 199029 series
برند:
CEJN
مشخصات:

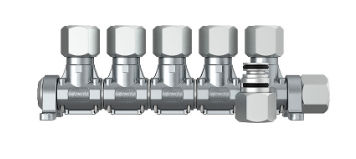

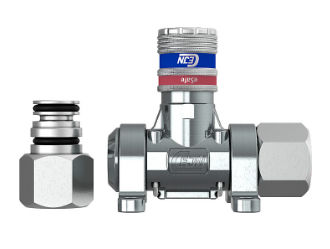

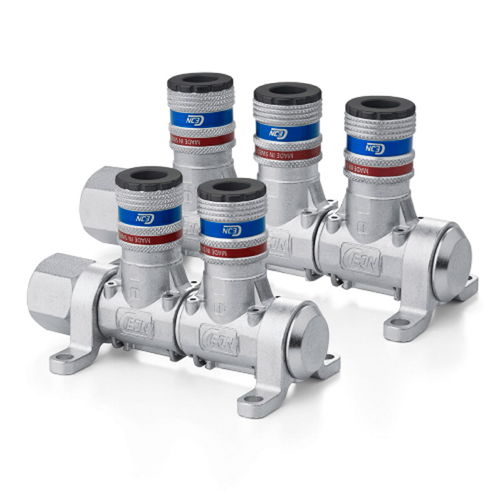

Outlet units with one to five integrated Series eSafe 300 couplings. To create multiple access points in one location without cluttering the work area or restricting the airflow with t-connections, bends and elbows.
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards.
Technical data
Media –
Compressed air, neutral gas
Material –
Zinc-plated steel/zinc
Connection –
G 1/2″ Female thread
توضیحات:
Applications
pneumatic, for compressed air
Attachment
quick
Norms
ISO, CEJN
Material
zinc-plated steel
Gender
female
Other characteristics
standard, compact, security, multi-port, automatic
Diameter
Max.: 5,500 µm(0.217 in)Min.: 10 µm
Operating pressure
12 bar, 16 bar(174.05 psi, 232.06 psi)
