نام محصول:

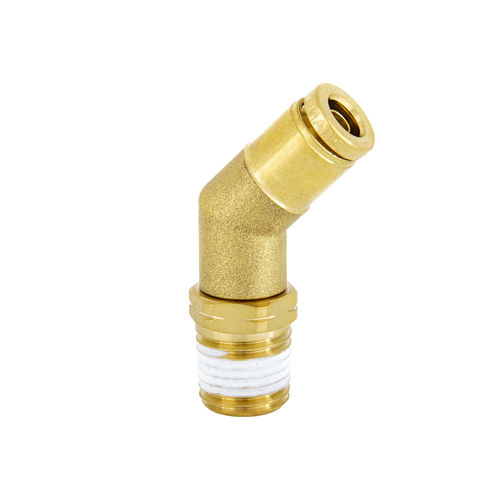

اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting PT Line
برند:
C.Matic S.p.A.
مشخصات:
Push in fittings for Vehicles applications complying with DOT FMVSS §571.106, SAE J2494-3 e SAE J1131 specs.
1-2 > Body and Release Ring: Brass UNI EN 12164 CW614N – UNI EN 12165 CW617N Nickel Plated 3 > Holding Ring: Resin (PEI) 4 > Gripping collet: Stainless steel AISI 301 5 > Protection Ring: Resin (PEI) 6 > Seals: NBR (low pressure)
Recommended tubings: PA Tubings complying with SAE (DOT).
Application fields: Application Fields: Pneumatic circuits for truck and Trailers : Air Suspension, Braking Systems, Transmissions, locking doors and windows, Seat adjustment, Instrumentation, Air conditioning systems, horn, wiper motors, valves, cylinders and accessories.
توضیحات:
Applications
pneumatic
Attachment
threaded, push-in
Configuration
elbow, T, Y, U-shaped
Material
NBR, nickel-plated brass
Gender
male, female
Other characteristics
union, high-pressure, swivel, wide temperature range, vibration-resistant
Diameter
Min.: 0.156 inMax.: 0.75 in
Operating pressure
290 psi
