نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting MA Line
برند:
C.Matic S.p.A.
مشخصات:

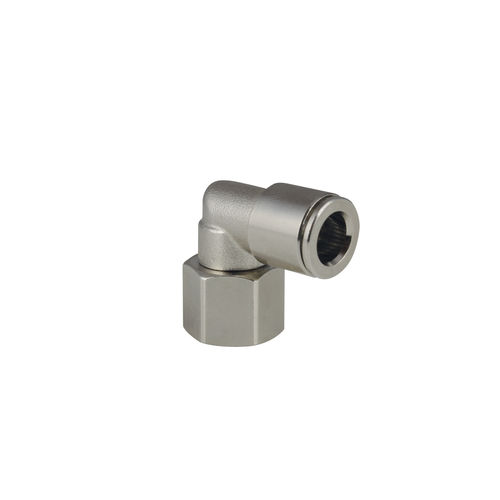

The MA is our “Automatic push-in fitting” line. It enables quick connections with calibrated plastic hoses at any time, at any stage of the pneumatic circuit and by a simple hand movement. The connection and the fitting tightness are made possible by the presence of the stainless steel grip and of an Oring inside the fitting so that once the tube is inserted to the bottom of the fitting, the stainless collet grips onto it and prevents it from being released. The tube disconnection is then possible by pushing onto the outer metal ring, called release ring. All MA fittings are brass nickel-plated.
Recommended tubings: PA11, PA12, PA6, Polyethylene PE, Polyurethane PU (98 Shore A).
Acceptable Tolerances on the tubings: +/– 0,07 mm up to Ø 10 mm and +/– 0,1 mm from Ø 12 up to Ø 14 mm.
Working Temperature: -20°C ÷ 70°C
Working Pressure: Pressure varies depending on the kind of tubing used and in any case it never has to exceed 18 bar.
Vacuum: up to 750 mmHg
Application fields: Pneumatic circuits
The push-in fittings of the MA line are com-pletely made of brass and they are suitable for quick connections in different industrial applications, they are robust. compact and guarantee high performances in time.
Ail MA fittings are electrotytic nickel-plated.
توضیحات:
Applications
pneumatic
Attachment
push-in
Configuration
elbow, T, Y
Material
brass, nickel-plated brass
Gender
male, female, male-female, female-female, male-male
Other characteristics
high-pressure, security, standard, wide temperature range, poppet
Diameter
Min.: 3 mm(0.118 in)Max.: 14 mm(0.551 in)
Operating pressure
20 bar(290.08 psi)
