نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting SMLS-..-.
برند:
Beswick Engineering Co, Inc.
مشخصات:

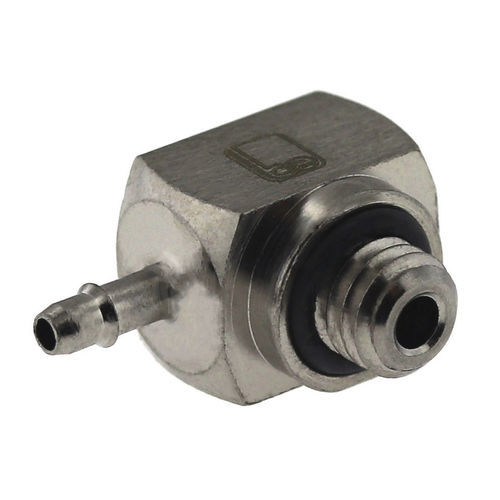

Low profile, adjustable position elbow fitting, with 10-32 thread and built-in barb.
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
Beswick’s trademark O-ring seal design provides a leak-tight joint.
Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: SMLS-1332 is also available in Titanium. The part number is: SMLS-1332-T2. Consult factory for more details.
توضیحات:
Applications
hydraulic, pneumatic
Attachment
screw-in, barbed
Configuration
90° angle
Material
stainless steel
Gender
male
Other characteristics
O-ring face seal, external thread, corrosion-resistant, 360° adjustable, for the aerospace industry
Diameter
Min.: 1.6 mm(0.063 in)Max.: 4.5 mm(0.177 in)
Operating pressure
Min.: 0 psiMax.: 100 psi
