نام محصول:

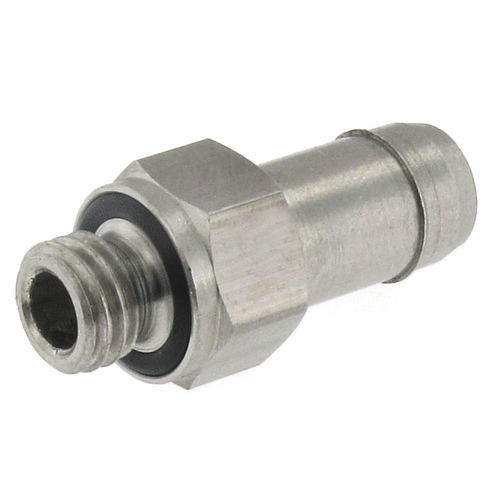

اتصالات پنوماتیک

نام انگلیسی:
Pneumatic fitting MH-..-.

برند:
Beswick Engineering Co, Inc.

مشخصات:
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

Beswick’s trademark O-ring seal design provides a leak-tight joint.

Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.

Note: MH-1012 is also available in Titanium. The part number is: MH-1012-T2. Consult factory for more details.

توضیحات:
Applications
hydraulic, pneumatic

Attachment
threaded, barbed

Material
stainless steel

Gender
male

Other characteristics
O-ring face seal

Diameter
Max.: 6.4 mm(0.252 in)Min.: 0.8 mm(0.031 in)

Operating pressure
Max.: 100 psiMin.: 0 psi
