نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting E Series
برند:
ALPHA AUTOMATISMES Sarl
مشخصات:
Instant Pneumatic Fittings – Ø 4 to 12 mm – M5 to 1/2″
Conical (Teflon-coated) or cylindrical (O-ring) fitting
Features:
– Competitive pricing, robust, highly reliable, with over 30 years of proven experience
– Firm attachment of the hose
– Stainless steel hook
– Compatible with industrial vacuum
– For calibrated technical hose made of nylon or polyurethane
– For calibrated technical hose made of nylon (KNYT), polyurethane (KPUT), or copolymer (FLEX)
Materials:
– Body (straight fitting): nickel-plated brass
– Body (elbow fitting): nickel-plated brass and acetal resin
– Hook: stainless steel
– Hose seal: NBR
– Ring: acetal resin
– Sealing for cylindrical connection: NBR O-ring
– Sealing for conical connection: Teflon-coated
Technical Specifications:
– Fluid: compressed air and other fluids compatible with the materials
– Pressure range: -1 to 10 bar
– Temperature range: -20 to +70°C
– Compatible hose: pneumatic hose in nylon or polyurethane
– Hose diameter: 4, 6, 8, 10, or 12 mm
– Connection: M5, G1/8″, G1/4″, G3/8″, or G1/2″
توضیحات:
Applications
pneumatic
Attachment
quick
Configuration

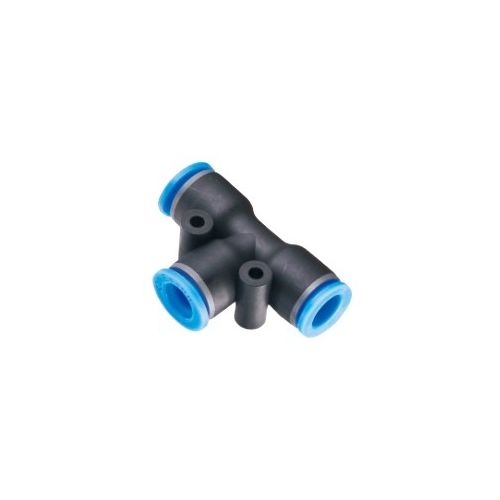

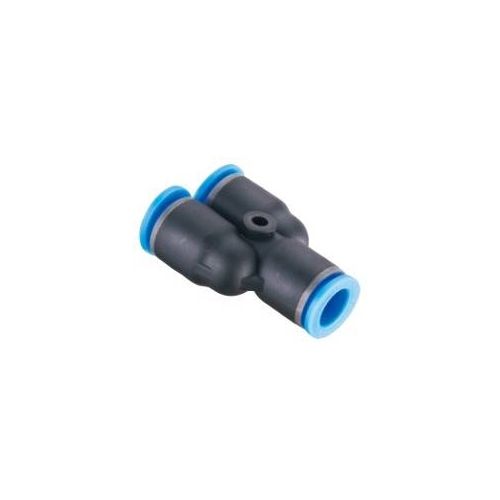

90° angle, 45° angle, right-angle, T, Y, cross
Material
plastic, technopolymer, resin, nickel-plated brass
Gender
male, female, female-female
Other characteristics
union, standard, compact, for hoses, external thread, poppet, orientable
Diameter
Min.: 4 mm(0.157 in)Max.: 12 mm(0.472 in)
Operating pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145.04 psi)
