نام محصول:
اتصالات پنوماتیک
نام انگلیسی:
Pneumatic fitting F31548 series
برند:
AIR Logic
مشخصات:

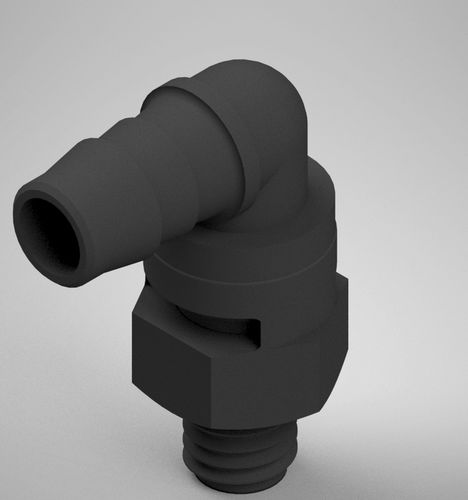

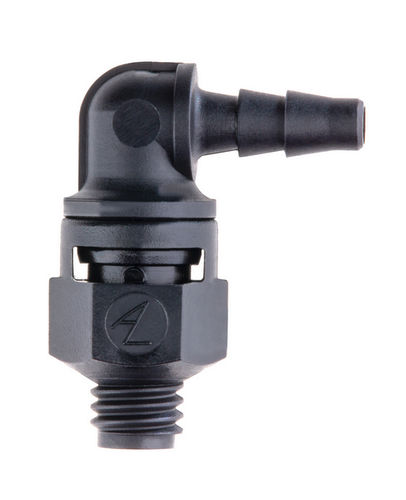

Swivel fittings connect tubing to a threaded hole. The barb (and tubing) can be freely rotated from the base. An integrated sealing bead provides a convenient and cost effective seal against the mating part. Barbed connections are a clean, time tested and cost efficient method of connection. The hoop strength of the tube holds around the barbed fitting. Air Logic’s first barb is free of a parting line to create a good seal, additional barbs increase holding force for tube retention.
Type
– 10-32 Swivel Elbow
Wetted Material(s)
– Elastomer Nylon
Additional Information
– Barbed connections are free of lubrication or thread sealant used in other styles of connection. Simply push the tube over the barb and the connection is complete.
This product may be integrated into other Air Logic products such as check valves, filters, switches and regulators. Custom materials may be available upon request.
Swivel products enable the production of tubing assemblies that can be made complete with fittings. This enables error-proofing in manufacturing where critical tubing assemblies must be connected correctly. Swivel products also relieve stress on tubing due to moving or re-positioning.
توضیحات:
Applications
pneumatic
Attachment
threaded, barbed
Configuration
90° angle
Material
nylon, silicone, fluoroelastomer, elastomer
Other characteristics
swivel, reduction
Diameter
0.06 in, 0.09 in, 0.125 in, 0.17 in
Operating pressure
Min.: 0 psiMax.: 125 psi
