نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting Profipress
برند:
Viega GmbH & Co. KG
مشخصات:

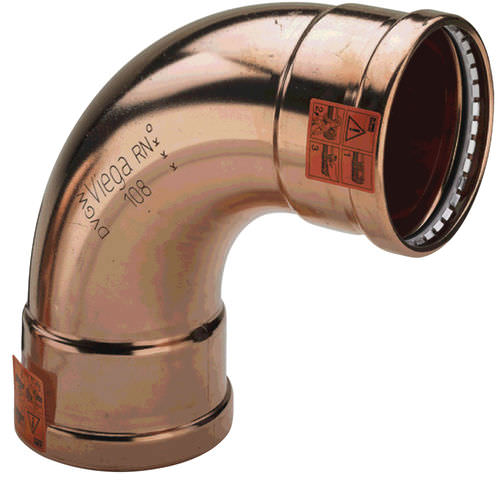

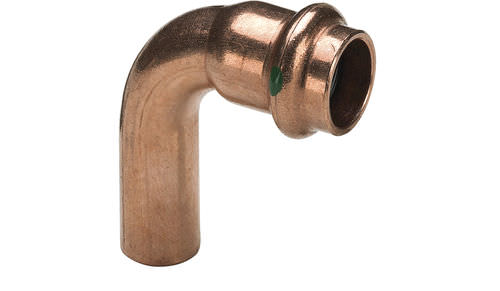

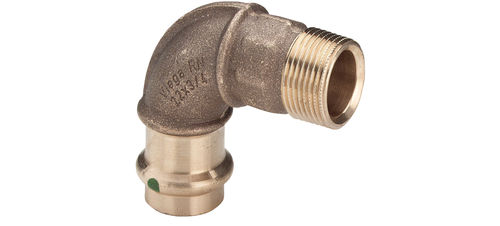

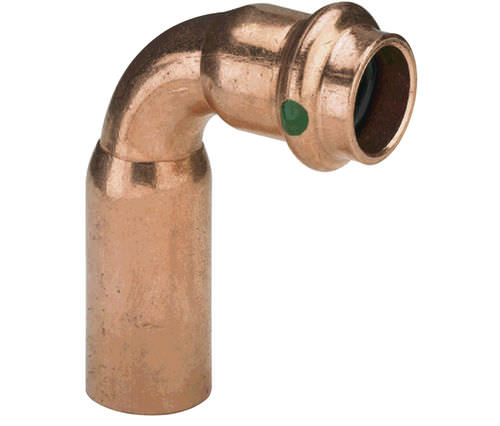

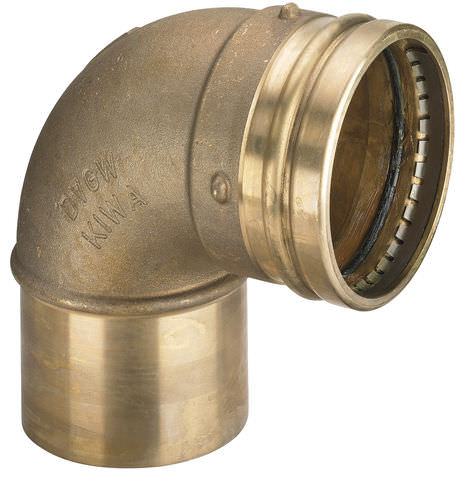

Flow-optimised press connector system made of copper (99.9 % Cu-DHP), gunmetal or silicon bronze for copper pipes. Press connectors for protecting the sealing element equipped with cylindrical pipe guide. Press connectors from d64.0 with stainless steel cutting ring to ensure the mechanical strength of the connection. The pressing force is located before and behind the sealing element seat. Suitable for concealed and pre-wall installations of riser pipes and floor installations.
Marking
Manufacturer, pipe dimension, batch, approval markings (DVGW), green dot on press end, detachable orange label as press indicator from d64.0
Press connector with SC‑Contur
Inadvertently unpressed connections are noticed immediately during a leakage test.
Sealing elements
EPDM (ethylene propylene diene rubber), black, pre-assembled
Dimensions
d12–108.0, size availability in accordance with the national regulations
Tools
The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorised service partners.
Areas of application
Potable water
Heating/radiator connection
Rainwater
Compressed air, inert gases
Cooling water pipelines
Industrial applications
Plant engineering
Note
Use of the system for areas of application and media other than those described must be agreed in consultation with Viega! Detailed information about applications, restrictions and national standards and directives can be found in the product information, either printed or on the Viega website.
توضیحات:
Applications
hydraulic, for compressed air, for gas
Attachment
crimp
Configuration
elbow
Material
EPDM, stainless steel, copper, bronze
Other characteristics
standard, poppet, sealed
Diameter
Max.: 108 mm(4.252 in)Min.: 12 mm(0.472 in)
Operating pressure
0.3 psi, 14.5 psi, 43.5 psi, 94.3 psi
