نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

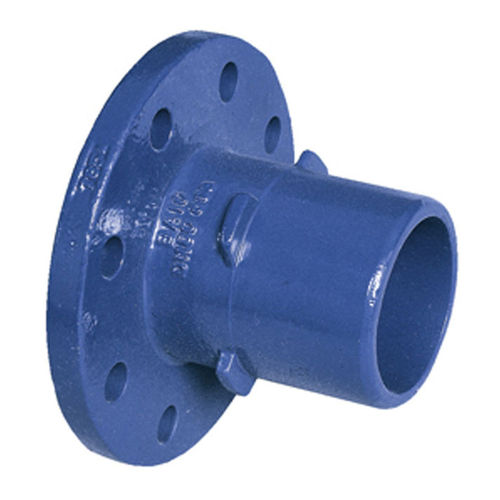

Hydraulic fitting BAIO® F
برند:
VAG-Group
مشخصات:
Fitting with spigot-end connection on one side and flange connection on the other for the connection of VAG BAIO®plus System components. Suitable for use in water distribution applications.
Sealing system/standard: Fitting in accordance with EN 546
With spigot end connection on one side and flange end on other side acc. to EN 1092-2
Spigot end with locking cams for internal bayonet locking
Pull-out proof due to positive connection and friction-locked connection
Short assembly times due to easy assembly or disassembly
Stress-free laying due to flexibility of inclination up to +/- 3°
For connection to VAG BAIO®plus System parts
توضیحات:
Applications
hydraulic
Attachment
socket, flange
Material
cast iron
Other characteristics
standard, corrosion-resistant
Diameter
Min.: 80 mm(3.15 in)Max.: 200 mm(7.874 in)
Operating pressure
10 bar, 16 bar(145.04 psi, 232.06 psi)
