نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
Stahlmann
مشخصات:

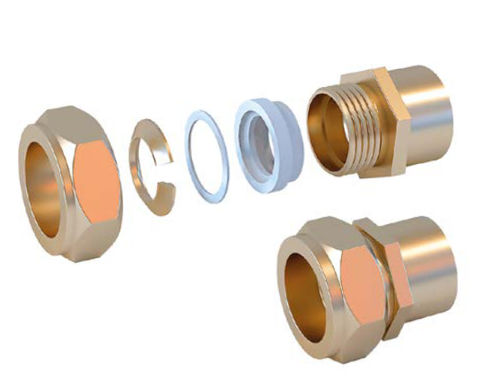

To ensure the tight installation of Stahlmann corrugated tube-based systems, we offer an extensive range of original fittings.
Fittings are made of high quality CW617N brass.
The distinctive feature of the fittings is their custom design developed by SST and allowing the part to be fitted to the tube in a matter of seconds.
To install the fitting, simply insert the tube into it and tighten the locknut. No disassembly of the fitting is required.
All Stahlmann fittings are certified. Thanks to the high-quality materials used in the manufacturing of Stahlmann fittings, they provide a high degree of dust and moisture protection, temperature resistance (to both high and low temperatures), resistance to sparks, rodents, fungus, mold.
Advantages

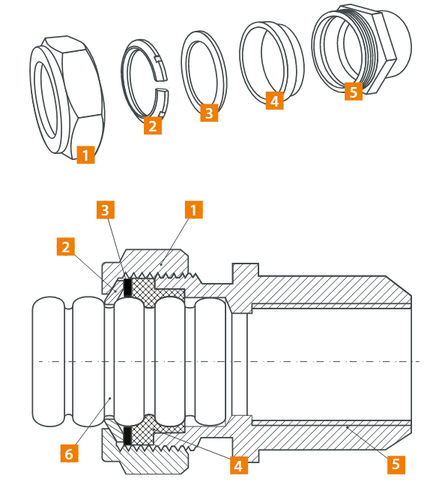

Manufacturing method – hot forging
• Material of the fitting and locking ring is CW617N brass (58–59% copper, providing maximum strength and ductility)
• Locking ring of 304 stainless steel
• Both nickel-plated and uncoated fittings are available
توضیحات:
Applications
hydraulic
Attachment
quick
Configuration
straight
Material
brass
Diameter
15 mm, 20 mm, 25 mm, 32 mm(0.591 in, 0.787 in, 0.984 in, 1.26 in)
