نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

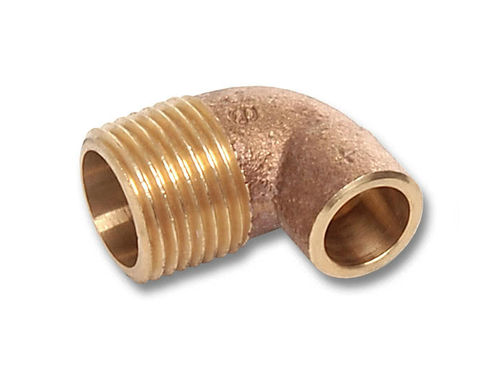

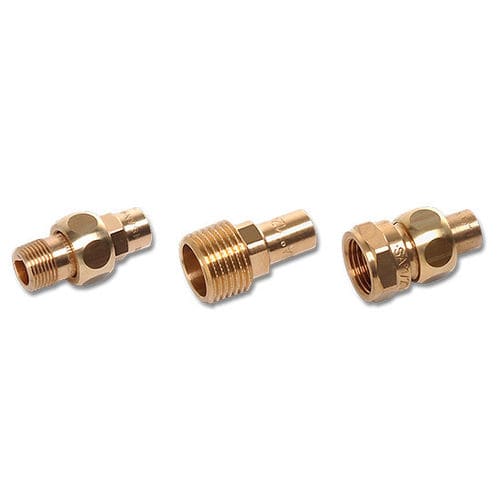

Hydraulic fitting SA series 4000
برند:
SANHA GmbH & Co. KG
مشخصات:
The SANHA series 4000 and 5000 “SA” consist of tried and trusted solder and transition fittings for copper pipes according to EN 1057 and EN 13348 for hard and soft soldering.
All products are certified according to many national and international certification bodies. SANHA capillary solder fittings are manufactured from copper (Cu-DHP, CW024A for moulded parts) and copper alloys CC499K (threaded parts, cast parts) and fulfill all requirements of BS EN 1254.
The SANHA®-capillary solder fittings dimension d = 6 mm up to 108 mm are suitable for the use in refrigeration and air conditioning systems. Assuming professional installation and the use of an appropriate brazing solder containing at least 5 % silver in combination with a suitable flux material, the operating pressure can be max. 45 bar at an operating temperature of 120 °C according to the European Pressure Equipment Directive 97/23/EG.
Features
Fittings for hard and soft soldering
Fast and secure installation due to a sealing feature in the thread and narrow manufacturing tolerances
Threads according to EN 10226 and ISO7/1, R and Rp type
Optimum corrosion resistance and hygiene thanks to low carbon content (<0.5 mg C/dm²)
توضیحات:
Applications
hydraulic, pneumatic
Attachment
screw-in, weld-on
Configuration
T type, elbow, cross
Material
copper
Other characteristics
corrosion-resistant, transition
Diameter
Max.: 108 mm(4.252 in)Min.: 6 mm(0.236 in)
Operating pressure
10 bar, 16 bar, 25 bar, 45 bar(145.04 psi, 232.06 psi, 362.59 psi, 652.67 psi)
