نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting B series
برند:
ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.
مشخصات:

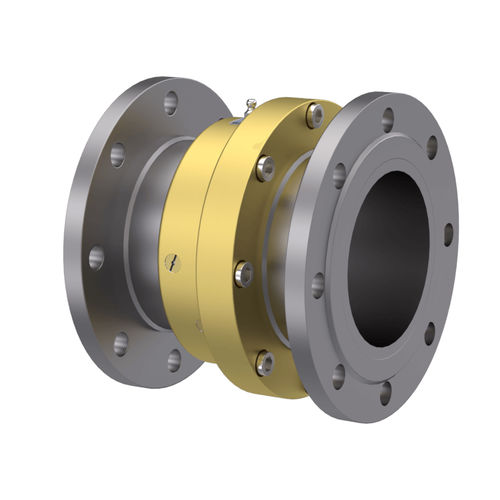

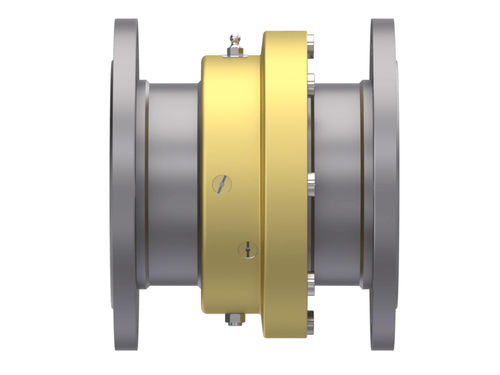

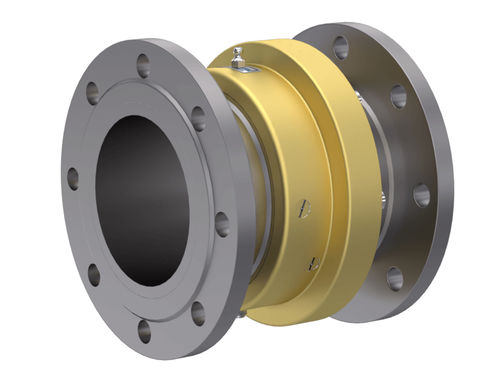

Swivel Joint for water, hydraulic oil and chemical fluids, with carbon steel material, flanged.
Media Type
Water + General Purpuse, Hydraulic Oil
Max. Speed
20 RPM
Max. Pressure
250 Bar
Max. Temperature
120 °C
Rotor Size
1/2″ DN15 10″ DN250
Single flow design, vertical rotation
Carbon steel material
Hardened inner sealing surface
Special design sealing components
Easy changable repair parts
All flage types are aviable DIN, ANSI etc..
توضیحات:
Applications
hydraulic
Attachment
flange
Material
carbon steel
Other characteristics
swivel
Diameter
Min.: 15 mm(0.591 in)Max.: 250 mm(9.843 in)
Operating pressure
Min.: 0 bar(0 psi)Max.: 250 bar(3,625.94 psi)
