نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

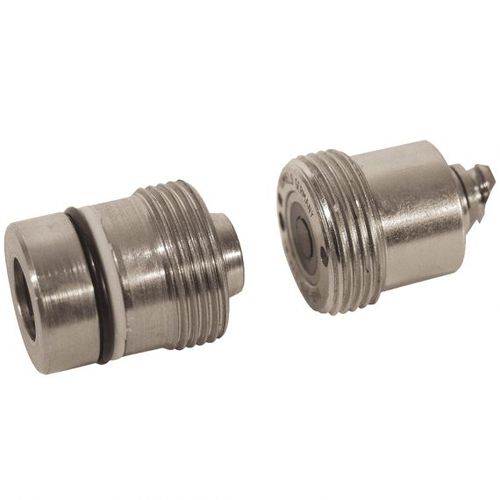

Hydraulic fitting F9.428
برند:
ROEMHELD NORTH AMERICA
مشخصات:
threaded-body type, max operating pressure 500 bar
transfer hydraulic oil or compressed air from the machine table to the hydraulic clamping fixture
4 different nominal diameters for optimum adaptation to the flow rate
built-in and threaded-body type of the same nominal size can be combined
axial sealing disk easily renewable
additional bushing simplifies the fabrication of the location hole for the coupling mechanism
relatively large positioning tolerances

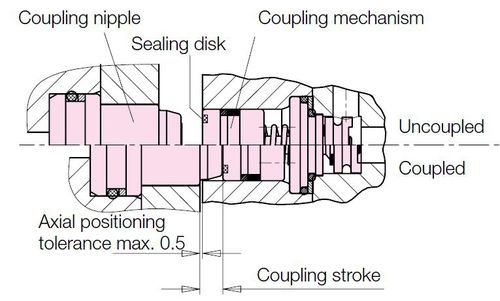

On machine centers with pallet changing systems, the coupling elements transfer hydraulic oil or compressed air from the machine table to the hydraulic clamping fixture. The coupling mechanism and the coupling nipple is provided with axial seals (see coupling situation) and have a very short coupling stroke. The smooth front face of the coupling mechanism is easy to clean in case of swarf formation. The recessed sealing disk can be easily replaced with the assembly tool if it is damaged. The built-in type is fixed with an intermediate plate and is particularly suitable for multi-couplings.
توضیحات:
Applications
hydraulic
Attachment
threaded
Other characteristics
transfer
Diameter
3 mm, 5 mm, 8 mm, 12 mm(0.118 in, 0.197 in, 0.315 in, 0.472 in)
Operating pressure
500 bar(7,251.89 psi)
