نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
Reinert-Ritz GmbH
مشخصات:

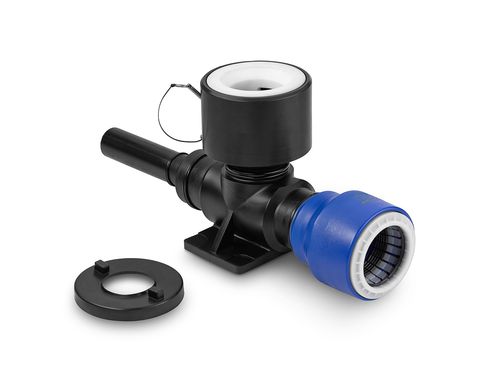

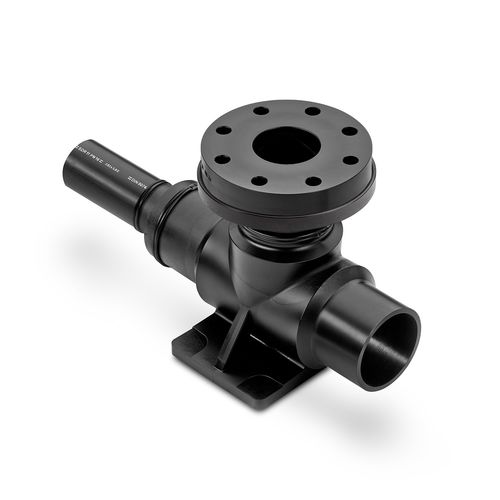

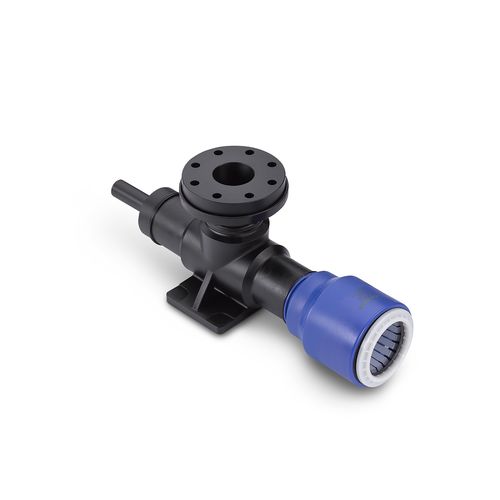

For connecting a service line to a hydrant tee, Reinert-Ritz offers a hydrant tee with a reduced barrel in different diameters. Due to the integrated reducer the hydrant connection combines several functions, so the system remains compact and saves on space. The hydrant end piece is DVGW-certified and constructed in full conformity with the pressure class. It can be delivered with a flange, BAIO® or spigot connection and is also available as a variant with REINOGRIP push-fit couplers.
The fittings to be offered must be manufactured from material in compliance with the PE100+ Association and according to DIN EN 12201 with respect to dimensions, tolerances and quality requirements.
Proof must be provided that they were manufactured on the basis of a quality assurance system in accordance with DIN EN ISO 9001.
For all fittings a certificate in accordance with DIN EN 10204 must be submitted by the manufacturer.
The body of the fitting including the foot must be manufactured in the injection moulding process or alternatively, in the case of more complex structures, from a piece of homogeneous semi-finished material so as to ensure the required reinforcement and therefore high stability of the fitting.
Semi-finished materials manufactured from wound rods or the subsequent application of other forms of reinforcing are not permitted.
The spigots must have a long shape to enable both HE butt welding and HW welding.
توضیحات:
Applications
hydraulic
Attachment
push-in, flange
Configuration
T
Norms
ISO, DIN
Material
PE
Other characteristics
compact
Diameter
Max.: 110 mm(4.331 in)Min.: 32 mm(1.26 in)
