نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting 3000 IB
برند:
Redfluid SL
مشخصات:
ASME B16.11 fittings are Pipe Joint Sleeves, Elbows, TEEs, Crosses to connect normally SCH pipes.
They are bar or forged fittings and can have threaded connections: BSP, NPT or welded: SW (Socket Weld) and BW (Butt Weld).
Connections
NPT (ANSI ASME B1.20.1), BSP, BSPT or Cylindrical GAS (DIN 259, ISO7 / 1, 228-1 10226-1), SW (ANSI ASME B16.11); BWASME B16.25, SW OD, Flanged ASME B16.5 – RF / RTJ – API 6A / 6BX, Mixed.
Materials
Carbon steel, Stainless steel 316 / 316L, Latón, Duplex, Superduplex, Hastelloy, Monel, among others.
Finishes
Black, Zinc Plated, Galvanized, Passivated

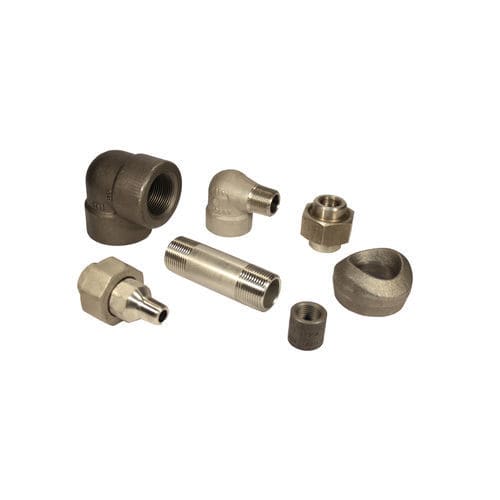

We manufacture different types of FITTINGS ASME B16.11 3000, 6000 y 9000 PSI:
COUPLING AND HALF COUPLING, NORMAL O REDUCED
MALE PLUG (Hex, Square or Round Head)
FEMALE CAP OR CAP
HEX HEAD BUSHING
FEMALE-MALE REDUCER ADAPTER TYPE
HEX NIPPLE OR REDUCING HEX NIPPLE
WELDING BOSS
UNION NUT OR THREE PIECE UNION (FEMALE-FEMALE OR MALE-FEMALE)
PIPE ROUND NIPPLES OF SCH TUBE
SWAGE NIPPLE, TOE, PBE, OR TBE.
BOSS, COUPLET, REDUCING INSERT, BULL PLUG
WELD-OULET, SOCKOLET(SOCK-OUTLET), THREADOLET (THREAD-OUTLET), NIPOUTLET, ELBOUTLET
Benefits
The fittings and accessories are standardized, but not all manufacturers or materials are the same. Our products have been used in a multitude of installations throughout 30 years in the oil and gas industry.
ACCESSORIES ACCORDING TO: ASME B 16.11-2009, MSS SP-83, ASTM A182
NPT ASME B1.20.1
SW ASME B16.11
REDUCING HEX NIPPLE (HEXAGONAL NIPPLE): BS 3799
THREE PIECE UNION NUT: MSS SP 83 o BS 3799
BW: ASME B 16-25
توضیحات:
Applications
hydraulic, for gas
Attachment
threaded, weld-on
Configuration
T, elbow, cross
Norms
DIN, BSPT, ASME BPE
Material
stainless steel, carbon steel, Hastelloy®
Other characteristics
NPT, reduction
Diameter
Max.: 6 inMin.: 0.125 in
Operating pressure
3,000 psi, 6,000 psi, 9,000 psi
