نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

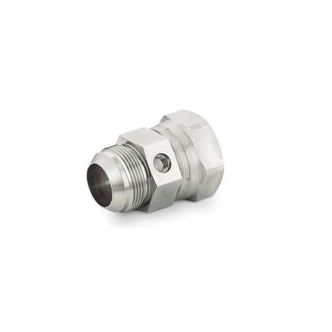

Hydraulic fitting 10-4 LOHL6G5TP-S
برند:
Parker Tube Fittings Division
مشخصات:
Parker’s in-line diagnostic tees are designed around the two most common hydraulic tube and hose interfaces: o-ring face seal (ORFS), Seal-Lok, and 37° flare JIC, Triple-Lok®. Developed to work in conjunction with electronic diagnostic products available from Parker’s Quick Coupling Division and other mechanical pressure and temperature sensing equipment, this product line is designed to be installed to a hose assembly or tube line without displacing the port adapter.
Markets:
• Construction
• Mobile
• Machine Tool
• Oil & Gas
• MRO
Features/Benefits:
• ORFS and 37° flare swivel feature offers unlimited positioning without displacing port adapter.
• Enlarged and lengthened body hex ensures diagnostic port offers full thread engagement and pressure capability.
• Diagnostic tee product line includes: Diagnostic Test Point (EMA3 and PD Series), conversion adapter, and pressure gauge adapters.
• Available in steel in sizes ¼” through 1 ½” or 6mm through 38mm with working pressures up to 10,000 psi.
Applications:
• In-line pressure and temperature measurements
• In-line oil sampling
• In field diagnostic without removal of port adapters
Performance Characteristics
Application
Various
Connection Type
In-Line Gauge Port Tee, BSPP Pressure Gauge Adapter, Union Tee with M16 Test Point Connector, and EO Diagnostic Swivels
Maximum Static Pressure
1400 to 10100 psi
توضیحات:
Applications
hydraulic
Attachment
threaded, quick
Configuration
37° flare
Norms
ORFS
Material
steel, zinc-plated steel, zinc
Other characteristics
O-ring face seal, union, swivel, JIC, test
Diameter
Min.: 0.25 inMax.: 1.5 in
Operating pressure
Min.: 0 psiMax.: 6,000 psi
