نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

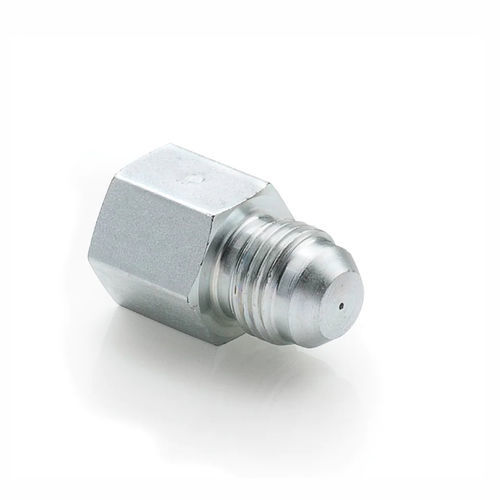

Hydraulic fitting 4 L0HL6-S .015 ORIFICE
برند:
Parker Stratoflex
مشخصات:
Parker’s Orifice Fittings come in both 37° flare and O-ring face seal (ORFS) configurations. These compact and cost effective orifice fittings allow OEMs to pre-set, at the factory, a specified orifice in specific hydraulic tube or hose lines, which eliminates or minimizes the need for costly flow control valves.
Markets:
• – Construction
• – Agriculture
• – Mining
• – Oil & Gas
• – Transportation
• – Alternative fuel
Features/Benefits:
• Available in commonly pre-set orifice sizes, orifice fittings provide OEMs with control over final factory established flow and speed characteristics of the hydraulic system.
• Designed for permanent or temporary installation, orifice fittings can be easily installed in-line into hydraulic system by simply connecting between hose swivel and adapter.
• Orifice size is permanently stamped on body for ease of identification.
• Can eliminate or minimize costly flow control valves.
• A line of orifice adapters that will replace a traditional port adapter is also available upon request.
• Available in steel in sizes 1/4”, 3/8” and ½” with working pressures up to 12,000 psi.
Applications:
• – Fixed rotation speed for hydraulic motors.
• – Fixed speed on cylinder extend or retract.
توضیحات:
Applications
hydraulic, for gas
Attachment
cutting ring
Configuration
37° flare
Norms
ORFS
Material
steel
Gender
male
Other characteristics
O-ring face seal, compact, agricultural, sealed, transfer, flow control, economical
Diameter
0.25 in, 0.375 in, 0.5 in
Operating pressure
634 bar(9,195.39 psi)
