نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

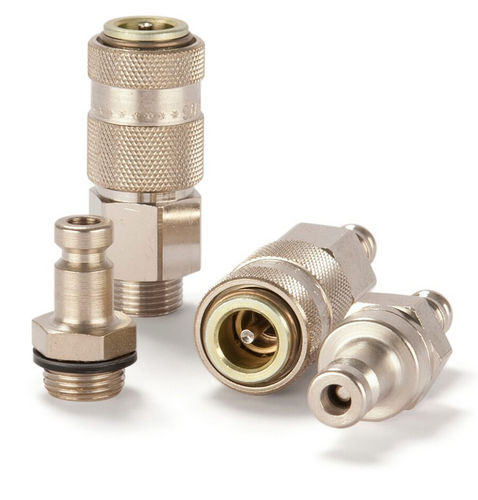

Hydraulic fitting 52 series
برند:
Parker Fluid System Connectors Division Europe
مشخصات:
Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.
Parker’s Premium Quick Coupling Series 52 is a coupling system with German industrial profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low
pressure drop. This robust coupling series in slim design mainly used for pneumatic applications. The steel sleeve
counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Markets:
-Machinery Construction
-Automotive
-Mobile Hydraulics
-Industrial
-Machine Tooling
Features/Benefits:
-UltraFlo valve for optimum flow and low pressure drop
-Steel sleeve counters oscillating forces
-Single-hand operation for easy and fast connection
Applications:
-Pneumatic Power Tools
-Assembly Lines
-Air compressors
-Fluid Transfer
توضیحات:
Applications
hydraulic, pneumatic
Attachment
threaded, quick, barbed
Material
brass, steel, zinc-plated steel
Gender
male, female
Other characteristics
poppet, robust, transfer, for the aerospace industry
Diameter
6 mm(0.236 in)
Operating pressure
Max.: 50 bar(725.19 psi)Min.: 0 bar(0 psi)
