نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

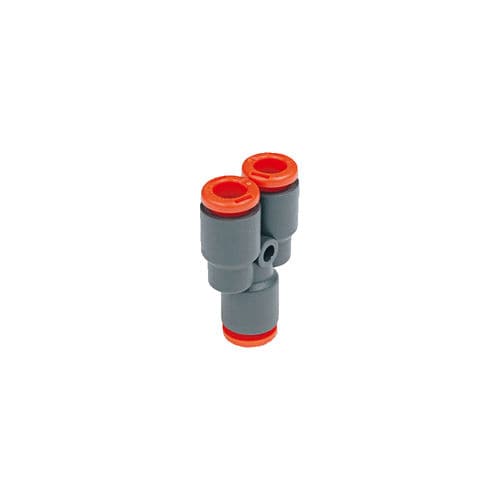

Hydraulic fitting R, F, XR series
برند:
METAL WORK
مشخصات:

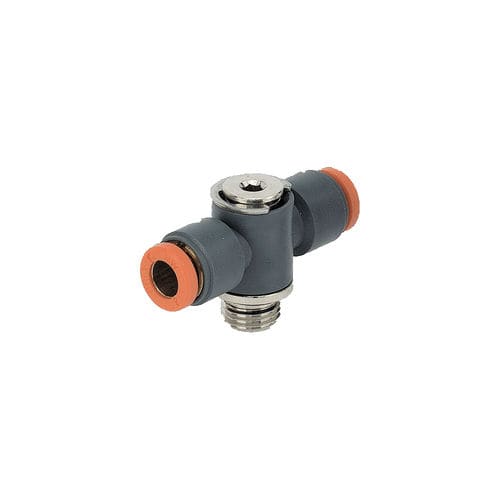

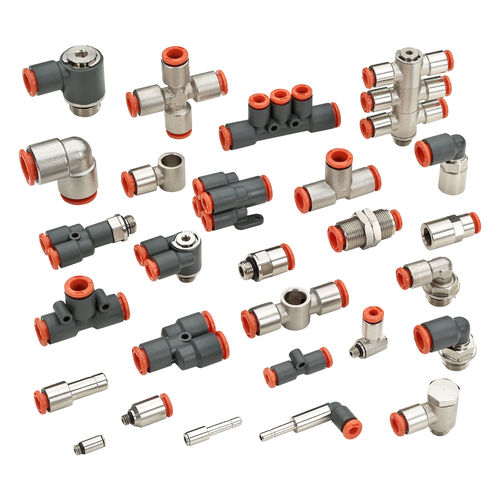

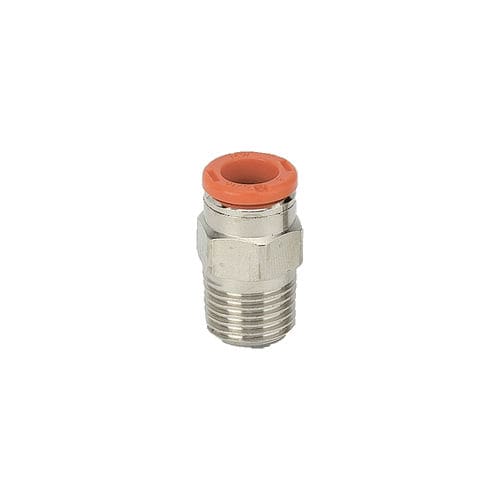

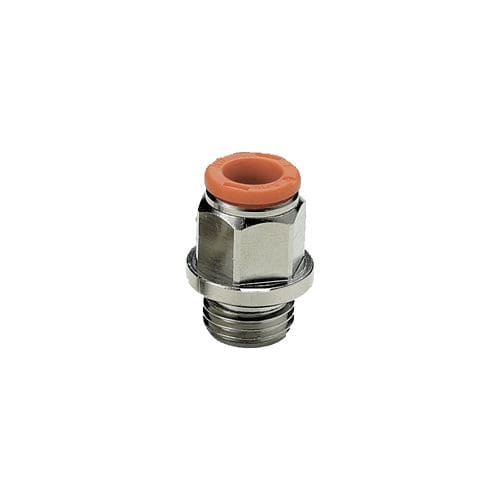

Push-in fittings by Metal Work are the best elements for connecting pipes and actuators. Quick and easy to use, the Metal Work push-in fitting can be re-used thousands of times without affecting the pneumatic and mechanical seal in any way. It comes in various configurations and guarantees a virtually unlimited, highly flexible use. The clamping spring with its special shape grips the pipe without scratching or deforming it, which facilitates release.In the fittings, the release bushing has patented screwdriver slots to facilitate release in applications not accessible to the fingers. Configurations RL19, RL21, RL22, RL23, RL23M, RL24, RL44, and RL49 (except for Ø5), have a ring for fixing to the wall asymmetrically in order to contain the head of a screw within the overall dimensions of the fitting.There are push-in fittings for metric pipes in the diameter range of 3 to 14, and push-in fittings for inch pipes in the diameter range of 1/8 to 1/2. Threaded connections have ISO 228-1G cylindrical thread in the 1/8-1/2 range, ISO 7-1 conical thread in the1/8-1/2 range, metric thread in the M3 to M12x1.5 range, and conical thread compatible with NPT female threading.
توضیحات:
Applications
hydraulic
Attachment
threaded, push-in
Configuration

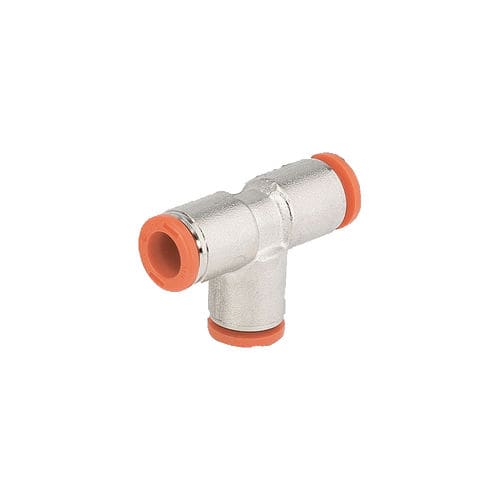

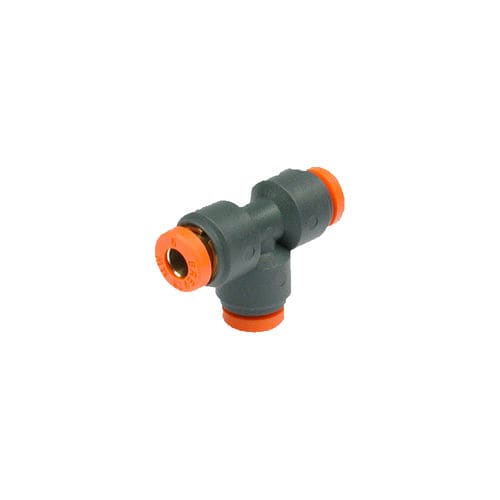

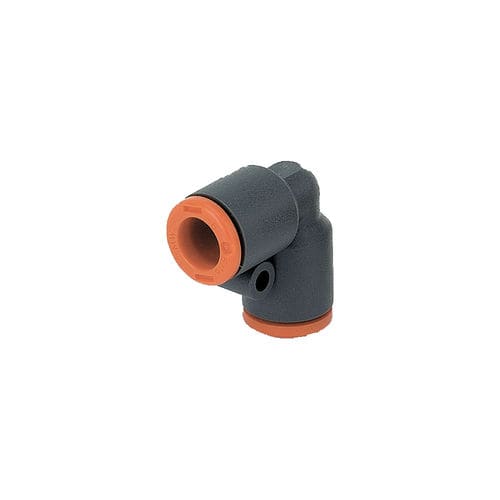

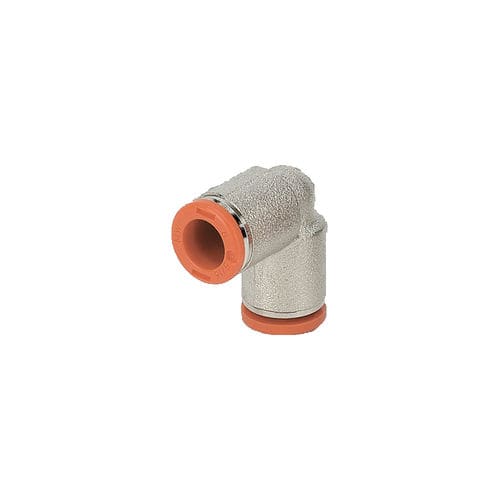

T, 90° angle, cross
Material
technopolymer, brass, stainless steel
Other characteristics
NPT, for the food industry, high-temperature
Diameter
Max.: 14 mm(0.551 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 16 bar(232.06 psi)Min.: -0.99 bar(-14.36 psi)
