نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
MASTERTUBI spa
مشخصات:

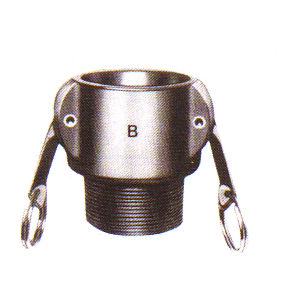

FEMALE MALE VERSION threaded
This type of fitting is designed for quick and secure junction in the shortest time possible between two pipes.
By inserting the MALE version within the female version will have a fast mechanical coupling to total passage with the clamping means of two lateral levers, whose eccentric on the fulcrum will get the final locking, via a plug or a spring system is obtained by the latch of safety of the two tabs.
The seal is guaranteed by standard seals in NBR rubber or of different material according to the passage of fluid. The end fittings can be supplied threaded, welded or flanged hose.
MATERIALS: AISI316 STEEL, BRASS, ALUMINIUM, POLYPROPYLENE
SIZES: 1/2 “- 3/4” – 1 “- 1 1/4″ – 1 1/2″ – 2″ – 2 1/2″ – 3″ – 4″ – 6″ – 8”
PRESSURE: 17 bar
THREAD : BSPP/NF ISO 228-1
توضیحات:
Applications
hydraulic
Attachment
screw-in, quick, camlock
Material
rubber, brass, stainless steel, aluminum
Diameter
Min.: 0.5 inMax.: 8 in
Operating pressure
17 bar(246.56 psi)
