نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

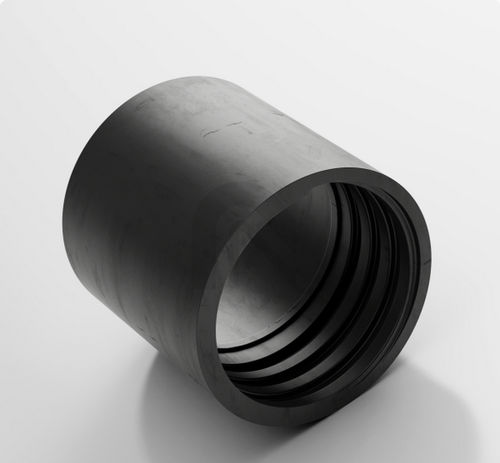

Hydraulic fitting Combiflex PU-V
برند:
Masterflex SE
مشخصات:
screw-on PU end fitting for Master-PUR hoses on spigots acc. to DIN 2448/DIN 2458, permanently antistatic
Description, addition to product name – screw-on PU end fitting for Master-PUR hoses on spigots acc. to DIN 2448/DIN 2458, permanently antistatic
Construction / Material
Specification of the connection solution – Connection thread is designed according to DIN ISO 228, Connection option without cross-section narrowing
design of the cuff – made of highly abrasion-resistant material, made of specified material
Properties
Specifications of the product –
Chemical Properties – microbe-resistant
Physical Properties – permanently antistatic
Colour – black
Other – reusable and replaceable, easy to assemble, Fixed version equipped with digital interface as standard. Compatible with the AMPIUS® app
Operating Temperature
Temperature Range – -40 to 90 °C
short-term maximum temperature – peaks to +125° C
Delivery Information
Delivery, type of production – Various nominal widths are available ex production, individual nominal widths also ex stock
Customizing Options
optional item modification (on request) – in permanently mounted design for liquid-tight, tension-resistant connections, other nominal widths, other colours
توضیحات:
Applications
hydraulic
Attachment
screw-in
Material
polyurethane
Other characteristics
abrasion-resistant, microbe-resistant
Diameter
Max.: 300 mm(11.811 in)Min.: 32 mm(1.26 in)
