نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

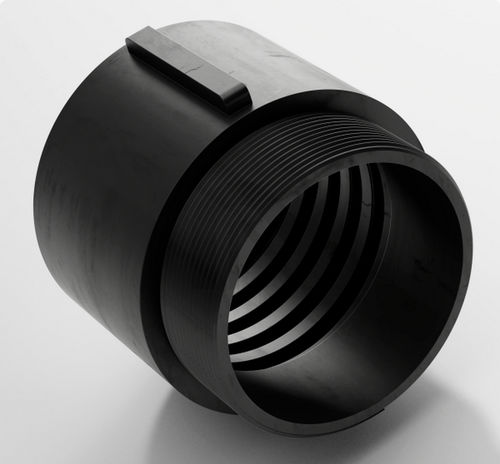

Hydraulic fitting Combiflex PU
برند:
Masterflex SE
مشخصات:
PU threaded connector for all Master-PUR L, Master-PUR H and Master-PUR HX hose types, based on DIN ISO 228
Description, addition to product name – PU threaded connector for all Master-PUR L, Master-PUR H and Master-PUR HX hose types, based on DIN ISO 228
Construction / Material
Specification of the connection solution – Connection thread is designed according to DIN ISO 228, Tension-resistant and largely leak-proof connection
Execution of the sprue / collar – made of abrasion resistant material
Material of the sprue / collar – Polyurethane
Properties
Chemical Properties – hydrolysis resistant, microbe-resistant
Colour – black
Other – reusable and replaceable, easy to assemble, Fixed version equipped with digital interface as standard. Compatible with the AMPIUS® app
Operating Temperature
Temperature Range – -40 to 90 °C
short-term maximum temperature – peaks to +125° C
Delivery Information
Delivery, type of production – Various nominal widths are available ex production, individual nominal widths also ex stock
Customizing Options
optional item modification (on request) – in permanently mounted design for liquid-tight, tension-resistant connections, other nominal widths, other colours
توضیحات:
Applications
hydraulic
Attachment
screw-in
Material
polyurethane
Other characteristics
abrasion-resistant, microbe-resistant, hydrolysis-resistant
Diameter
Min.: 50 mm(1.969 in)Max.: 150 mm(5.906 in)
