نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

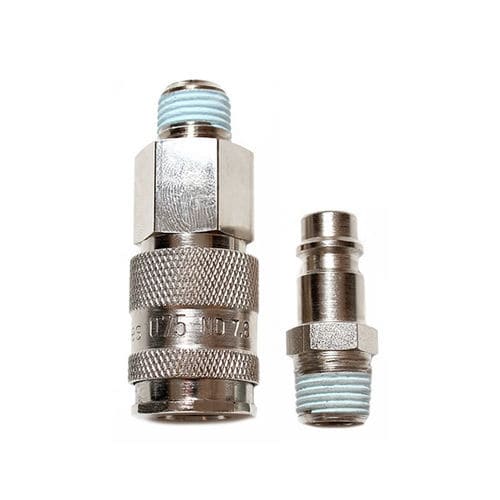

Hydraulic fitting 075 series
برند:
Kee Connections
مشخصات:
he 075 series is specially suited to compressed air applications. Its compact dimensions and single handed operation make it suitable for numerous applications.
Advantages
Single handed operation.
Small dimensions.
All versions interchangeable
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Steel Nickel Plated
Spring and Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR
Plug Specifications
Plug Body: Steel Nickel Plated
Working Temperature (Depending on Medium):
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Working Pressure: 35 Bar – maximum static working pressure with safety factor of 4 to 1
توضیحات:
Applications
hydraulic
Attachment
threaded, ring
Material
EPDM, brass, stainless steel, nickel, NBR, medium
Gender
female
Other characteristics
compact, spring
Diameter
23 mm(0.906 in)
