نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

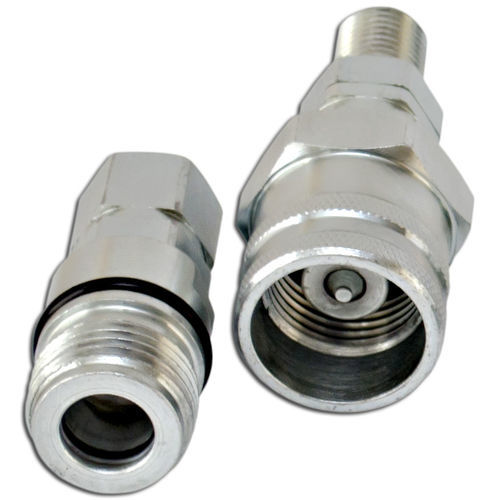

Hydraulic fitting QT series
برند:
Hydrosila
مشخصات:
– Interchangeable according to ISO 14541
– Conical valve with O-ring
– Connection under pressure allowed
– Threaded fixation of coupling
Threaded couplings are designed for quick connection and disconnection of hydraulic lines in the hydraulic system without loss of working fluid.
Application:
– Road vehicles
– Industrial sector
– Construction equipment
– Career machinery
The QT series is a coupling with threaded couplings connect and a conical valve. They comply with the international standard ISO 14541. They are used in hydraulic systems up to 450 bar, at pulse pressures and vibrations. They have a galvanic coating, which increases the service life of the quick connector.
Specifications:
– O-ring from european manufacturers.
– Threaded fixation of coupling.
– Fluid temperature range -25°С – 125°С.
– Working flow 12 l/min.
– Thread port sizes: BSP (1/4″) and METRIC (М14х1,5).
توضیحات:
Applications
hydraulic
Attachment
threaded, quick
Norms
ISO, BSP
Material
carbon steel
Other characteristics
with O-ring, standard, agricultural
Diameter
6.3 mm(0.248 in)
Operating pressure
450 bar(6,526.7 psi)
