نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting 85 series
برند:
Heyco
مشخصات:

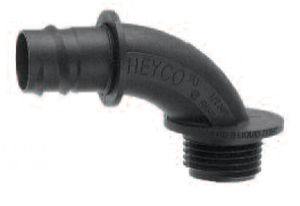

90° Sweep, Snap-In and NPT Hubs
For use with Heyco-Flex™ II Conduit and Tubing
FEATURES
– One-piece solution with smooth internal surfaces provides for easier wire routing, protection, and installation around corner angles.
– Easy, permanent assembly: the installer twists the tubing over the connector ferrule.
– Snap-in Fittings are UL recognized for use with Heyco-Flex II Tubing.
– Unique locking fingers accommodate various panel thicknesses.
– All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification and testing.)
– Suitable for a wide array of electrical applications:
– Commercial and Industrial HVAC Systems
– Motorized Equipment
– Enclosed Power Sources
– Garage Door Openers
– Major Appliances
– Dry location only.
– Finishing collars available to neaten rough cut tubing ends.
– Assembly Tool available for assembling Quick Twist Fittings into HF1 and HF2 Conduit and Tubing.

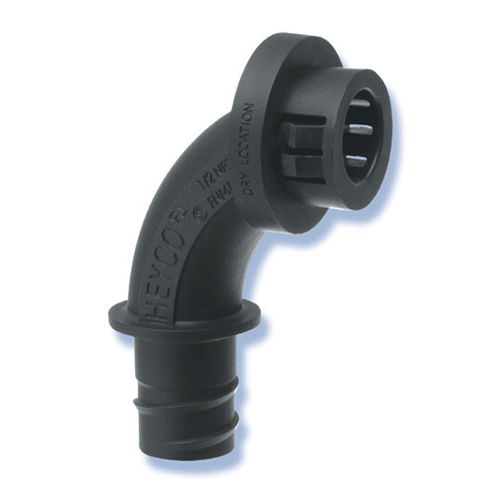

Snap-in Hubs
– Snap-in Fittings are UL recognized for use with Heyco-Flex II Tubing.
– Suitable for dry location only.
NPT Hubs
– NPT threaded fittings are UL approved for use with Heyco-Flex I & II Conduit and Tubing.
– If using a tapped hole, Teflon® tape is needed onthethreads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
– Locknuts not included. To order nylon or metal locknuts separately, See metal locknuts: NPT, PG, and Metric and Nylon locknuts: NPT, PG, and Metric.
توضیحات:
Applications
hydraulic
Attachment
threaded, quick, snap-in
Configuration
90° angle
Material
nylon, Teflon®
Other characteristics
NPT, sealed

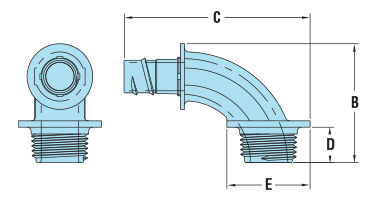

Diameter
31.2 mm, 38.1 mm(1.228 in, 1.5 in)
