نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting Fig.2
برند:
Hebei Jianzhi Casting Group Co., Ltd.
مشخصات:

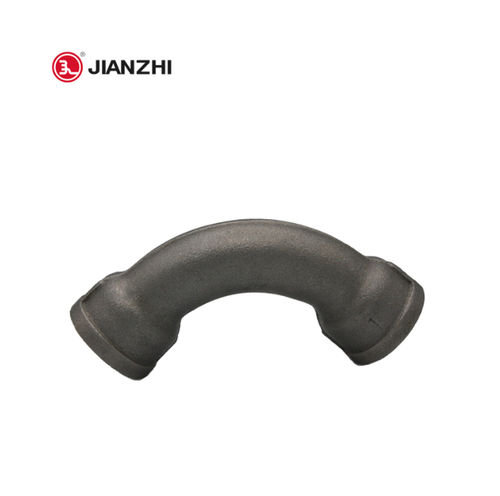

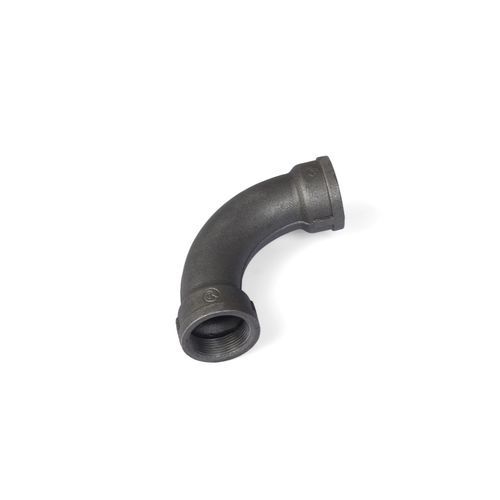

BSP Black Malleable Iron 90 Degree Bend
Maximum Temperature: –
200°C (392°F)
Tensile Strength: –
350MPA
Suitable Applications: –
Water, Oil, Gas, Petro-Chemical
Product Description
Malleable iron is obtained from an iron-carbon alloy with a carbon content of more than 2.14% as a result of eutectic transformation during crystallization. After casting, the fittings are specially kept at a temperature of 95 ° C, i.e. slow and uniform cooling occurs. The result is a very fine-grained metal structure. This leads to a decrease in internal stresses and an increase in tensile strength.The pipelines of sanitary-technical systems, through which water, steam, gas move, consist of separate sections of pipes connected by welding, flanges or threads.

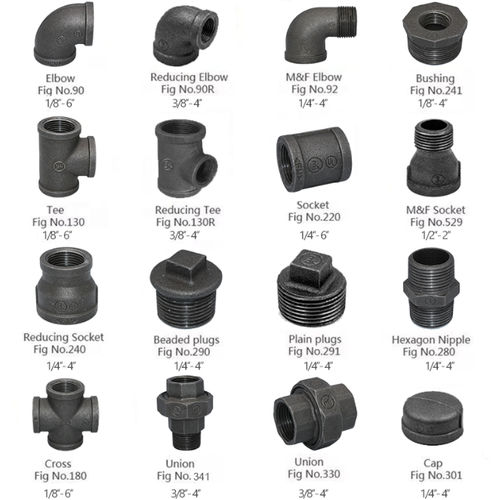

Most connections on pipes are made one-piece (welded and threaded), but for the possibility of dismantling pipelines during repair, as well as in places where valves are installed, detachable connections are provided (flange, union nut, threaded with a squeegee). In the assortment of our company, you can find fittings for all major types of pipeline connections.
Product Parameters
Standard: – EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: – EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： – PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： – UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe,
توضیحات:
Applications
hydraulic
Attachment
threaded
Configuration
elbow, angle
Norms
BSP
Material
carbon, metal, iron, alloy
Other characteristics
standard, union, cooling, flange, sanitary
Diameter
Max.: 150 mm(5.906 in)Min.: 6 mm(0.236 in)
Operating pressure
25 bar(362.59 psi)
