نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

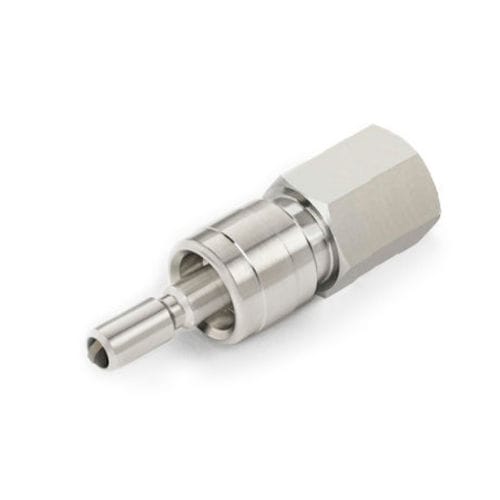

Hydraulic fitting QC4SSSFG1/8
برند:
HAM-LET
مشخصات:
These HAM-LET QC-LOK Connector valves are intermixable and interchangeable with instrumentation quick connectors from major manufacturers. They are fitted with Viton O-Rings as standard and either valved or non-valved stems are available. The valves operate at a pressure rating up to 3,000 psig (206 bar). A smart heavy duty locking mechanism allows fo a safe and smooth push-in connection between the QC-LOK Connector valves.
Validation tests for the QC-LOK Instrumentation Quick Connectors are based on ANSI/B93.51M 1980. The single-end shutoff stem doesn’t have a valve and stays open when it is uncoupled. The double-end shutoff (DESO) stems do have valves and these shut off when they are uncoupled. The connectors can be used in numerous applications.
توضیحات:
Applications
hydraulic
Attachment
quick
Material
stainless steel
Other characteristics
standard
Diameter
Max.: 0.5 inMin.: 0.125 in
Operating pressure
Max.: 3,000 psiMin.: 0 psi
