نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

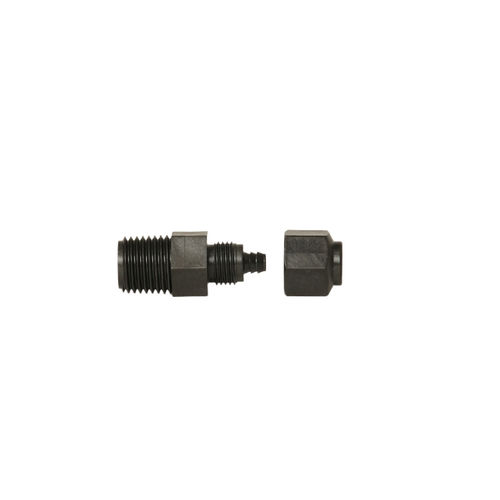

Hydraulic fitting AL-01 series
برند:
HAKKO CORPORATION
مشخصات:
Nut Type, Compression, Lightweight Fittings | Fitting is made of PEEK resin that allows you to transfer acid, alkali and organic solvents.
For Cooling Unit, Printing Equipment and Chemical Transport Unit
For Water Treatment, Semiconductor, Precision Equipment and Medical Equipment
Lightweight…Fitting weight is less than one-fifth, compared to same-size SUS joints, leading to overall weight reduction of equipment.
Great Heat Resistance…PEEK material has excellent heat resistance among resins.
Chemical Resistance…PEEK material has excellent resistance to a wide range of chemicals including acids, alkalis and organic solvents. (Compared with SUS fittings, PEEK fittings show better chemical resistance.)
Mechanical Strength… Carbon fiber is added to the engineering plastic of PEEK, which is strong in tensile and impact resistance.
RoHS2…AL Fittings are compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2). (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is availabl
توضیحات:
Applications
hydraulic
Attachment
compression
Material
PEEK
Other characteristics
reduction, cooling, lightweight, transfer
Diameter
2 mm, 4 mm, 6 mm, 8 mm(0.079 in, 0.157 in, 0.236 in, 0.315 in)
Operating pressure
Max.: 75 bar(1,087.78 psi)Min.: 5.5 bar(79.77 psi)
