نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
Goldstone Orient New Material Technology
مشخصات:
When connecting RTP / TCP reinforced pipes, steel compression end fittings are usually considered because non-metallic fittings cannot withstand such high working pressure.
When connecting RTP / TCP reinforced pipes, the steel compression type end fittings are usually considered, because the none-metal fittings cannot resist such high working pressure.

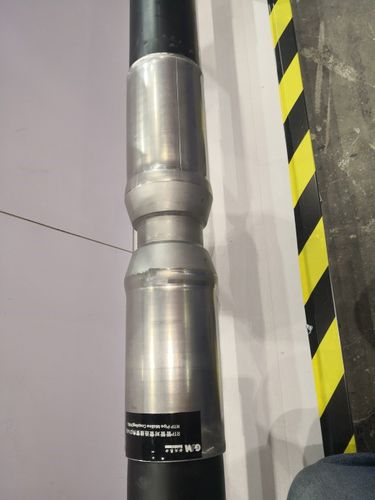

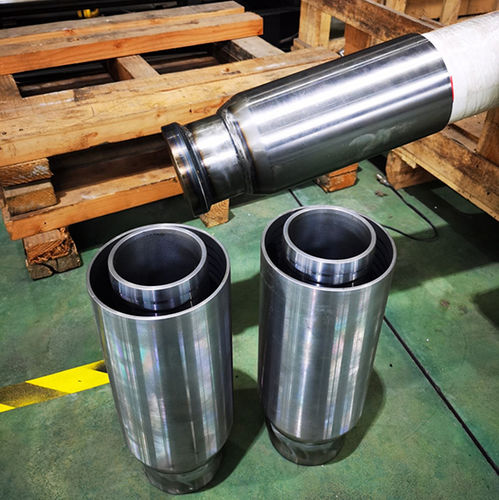

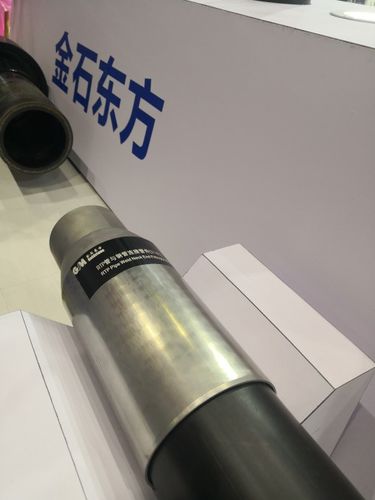

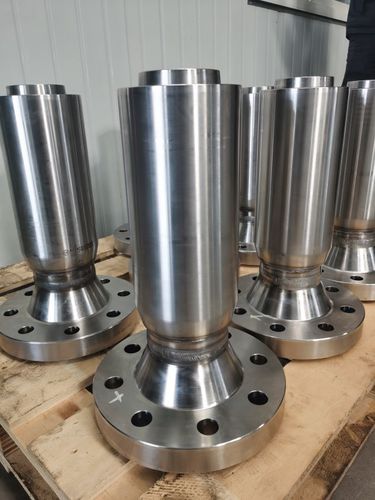

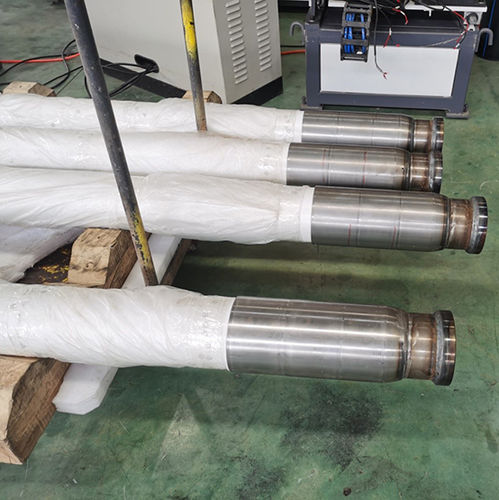

The flexible RTP is a spool-able long pipe, and a termination fittings will be installed at the end of the pipe, connect pipe to pipe, or pipe to valves. There are flanges or thread joints, and welding joint. The fitting can made by carbon steel, 316 stainless steel, 2205 duplex stainless steel, suit for different working condition and corrosion fluid.
The end fitting is installed on the pipe by mechanical compression method. Goldstone has good experience in the design of clamping tooth profile and the distance of compression, and our owned know-how can guarantee the fitting can work under high pressure and high temperature.
توضیحات:
Applications
hydraulic, for gas
Attachment
threaded, compression, flange, crimp
Configuration
straight
Material
RTP, composite, stainless steel, steel, carbon steel, zinc-plated steel
Other characteristics
high-pressure, flexible, for chemical applications, high-temperature, heavy-duty, corrosion-resistant, flange, all-fluid
Diameter
Max.: 250 mm(9.843 in)Min.: 40 mm(1.575 in)
Operating pressure
Max.: 250 bar(3,625.94 psi)Min.: 40 bar(580.15 psi)
