نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

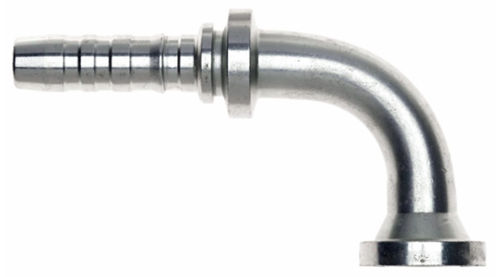

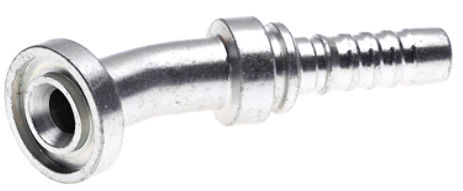

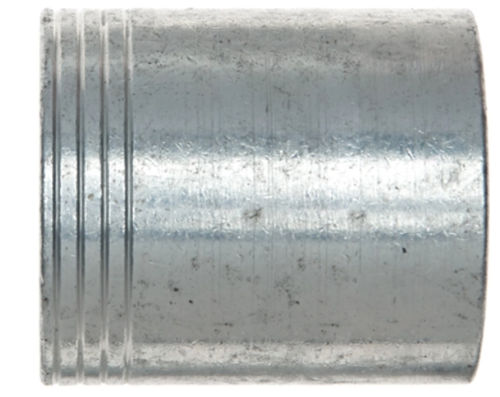

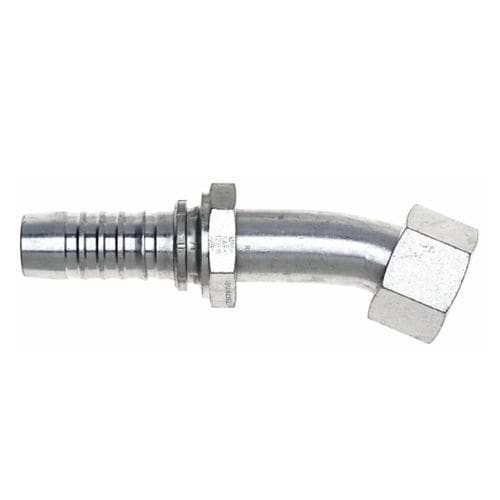

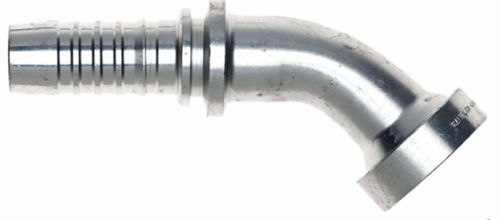

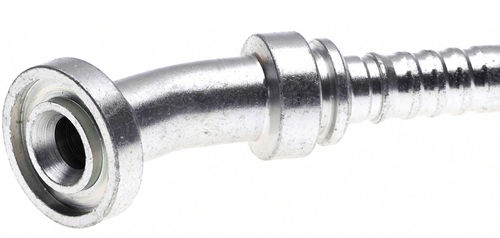

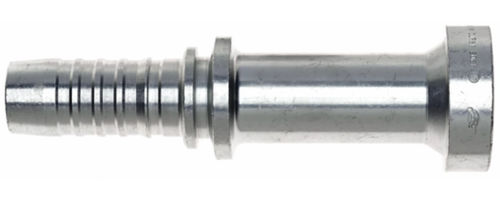

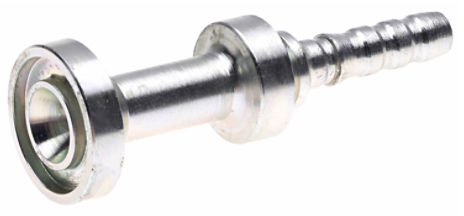

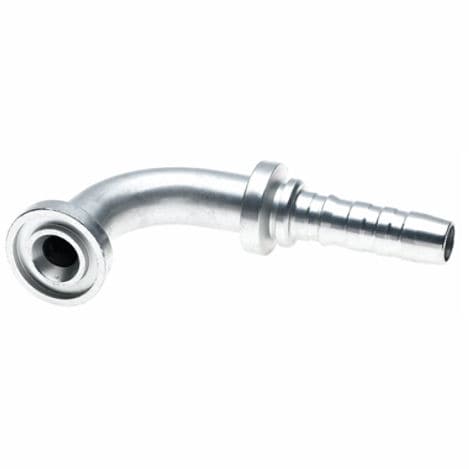

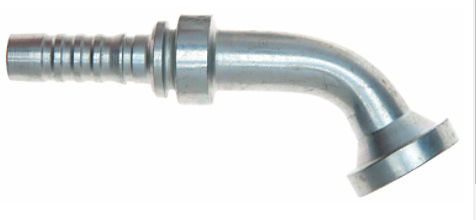

Hydraulic fitting GLOBALSPIRAL™
برند:
Gates
مشخصات:
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labour, odour, fabrication errors and contamination of the fluid power system. Maximum application coverage – GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral™ thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat® plating – more than five times better corrosion resistance than SAE ASTMB117 specification.
Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
Surpasses one million impulse cycles.
توضیحات:
Applications
hydraulic
Attachment
barbed, crimp
Configuration
elbow
Material
metal
Other characteristics
high-pressure, for hoses, corrosion-resistant, spiral
Diameter
Min.: 6 mm(0.236 in)Max.: 31 mm(1.22 in)
Operating pressure
6,000 psi
