نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

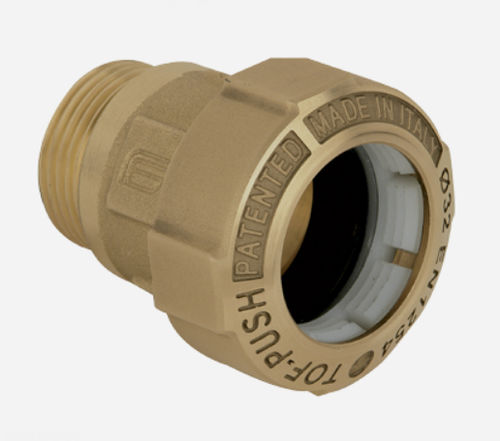

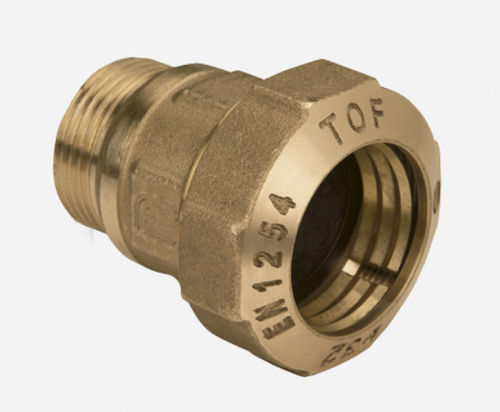

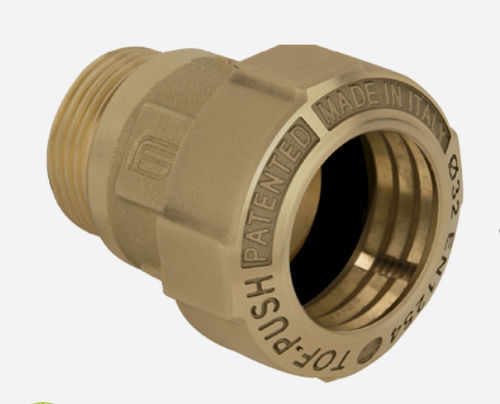

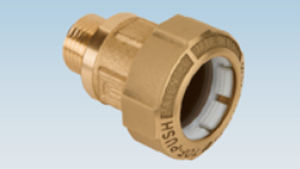

Hydraulic fitting TOF-P series
برند:
EFFEBI
مشخصات:
PRESSURE AND TEMPERATURE LIMITS
Max. Temperature: from +5°C to +80°C – Max. Pressure: PN16 (20°C)
The max pressure is measured at ambient temperature. For other temperatures please check the PN reduction according to EN12201-1 (appendix A).
Note: do not use this fitting at temperatures above the ones agreed for the pipe.
Threaded end connections UNI ISO 7/1
THIS FITTING ALLOWS THE CONNECTION OF HIGH OR LOW DENSITY POLYETHYLENE PIPES.

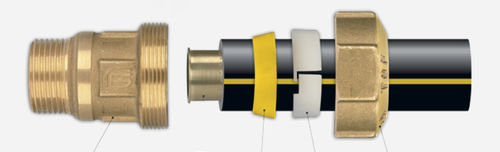

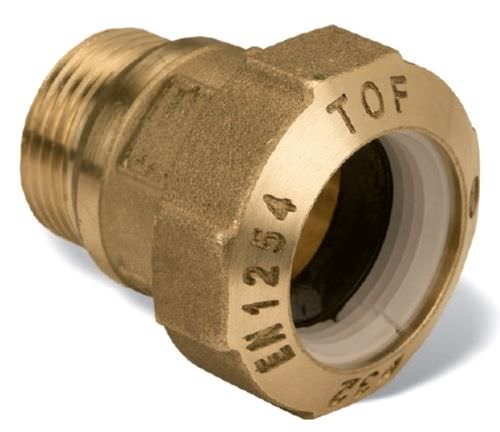

The TOF joint system is very simple, easy and quick to install. It consists of only two elements: rubber truncated cone-shaped gasket and metal or plastic anchor ring. The rubber ring has a special configuration due to the polyethylene and production technology.
The truncated cone conforms to pipe tolerance (including ovality) and ensures a perfect hydraulic seal thanks to its proportional resistance, thus offering an important support to the mechanical sealing ring.
The special configuration of the mechanical sealing ring ensures a good adaptation to pipe tolerance and a perfect fastening to the pipe. For PE 100 pipes and gas pipes an internal reinforcing element (bushing) makes the pipe more rigid. The TOF PE joint with reinforced bushing is suitable for PE-X pipes.
The TOF joint is classified as type A compression joint, complying with regulation EN1254-3. The threads comply with regulation UNI ISO 7/1.
توضیحات:
Applications
hydraulic
Attachment
screw-in, push-in
Material
brass
Gender
male-female
Other characteristics
reduction
Diameter
Max.: 110 mm(4.331 in)Min.: 20 mm(0.787 in)
Operating pressure
16 bar(232.06 psi)
