نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

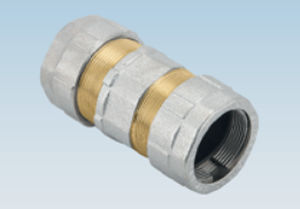

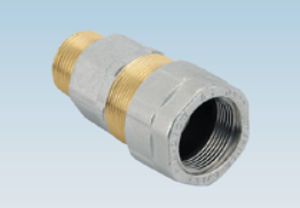

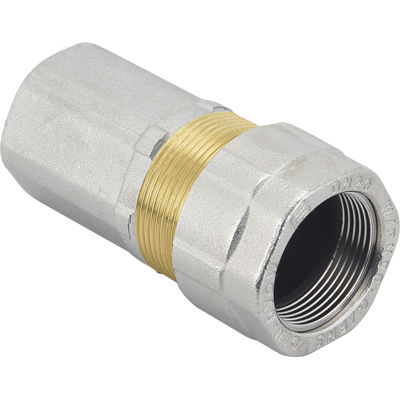

Hydraulic fitting KRONOS series
برند:
EFFEBI
مشخصات:
TECHNICAL FEATURES:
Temperature limits:
for fluids from –20°C to +90°C
for gas from –20°C to +60°C
*Pressure limits for fluids: (20°):
3/8”- 1” =PN50 – 1”1/4 – 1”1/2 =PN32 – 2” =PN25
for gas MOP5
SPECIFIC FEATURES:
• The KRONOS fitting for iron pipes allows to connect and/or repair iron pipes.
• The cone-shaped (NBR) sealing system compensates for possible under sized diameter of the pipe.
• The antithreading brass ring sticks perfectly to the pipe thanks to its auto-locking serration.
Application fields:
The KRONOS fittings for iron pipe are used for repairs of civil water and gas plants renovation, industrial and civil heating, hydraulic plants.
Threaded end connections:
• Standard female and male according to UNI ISO 7/1
(UNI EN 10226).
توضیحات:
Applications
hydraulic, for gas
Attachment
threaded
Material
brass
Gender
male-female
Diameter
Max.: 50 mm(1.969 in)Min.: 10 mm(0.394 in)
Operating pressure
25 bar, 32 bar, 50 bar(362.59 psi, 464.12 psi, 725.19 psi)
