نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting 3084605
برند:
Dropsa spa
مشخصات:

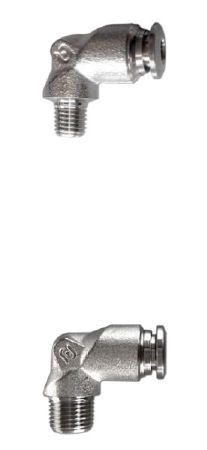

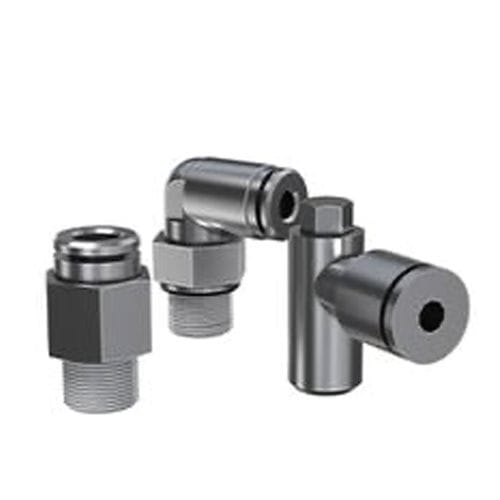

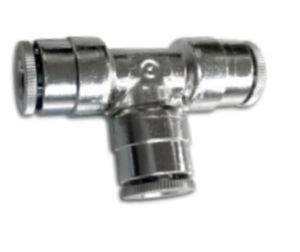

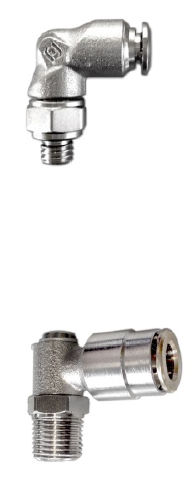

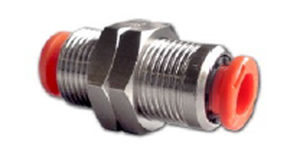

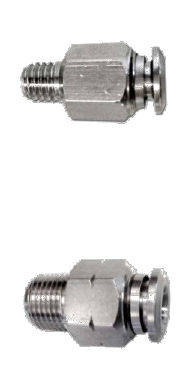

The DropsA High Pressure Push-in Fittings are available in different types.
Easily assembled and disassembled; there is no wear or damage to the tubes as previously experienced with conventional & push-in fittings.
The new DropsA High Pressure Push-in Fittings for oil and grease offer key benefits:
-Lower cost when compared to existing compression fittings
-Fast clamping of tube into fitting drastically reduces assembly time and assembly cost
-Reduced maintenance cost thanks to quick substitution
Key features:
– Threads: 1/8” BSP – 1/4” BSP – M6x1
– Tube: Nylon, Rilsan, Polyamide, Polyethylene, Polyurethan
– Fluid: Oil, grease
– Working temperature: -10°C ÷ +80°C (+14°F ÷ +176°F)
توضیحات:
Applications
hydraulic
Attachment
push-in
Configuration
elbow
Material
brass
Gender
male
Other characteristics
high-pressure, lubrication
Diameter
Min.: 4 mm(0.157 in)Max.: 6 mm(0.236 in)
Operating pressure
Min.: 0 bar(0 psi)Max.: 150 bar(2,175.57 psi)
