نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
DIXON GROUP EUROPE
مشخصات:
Application :

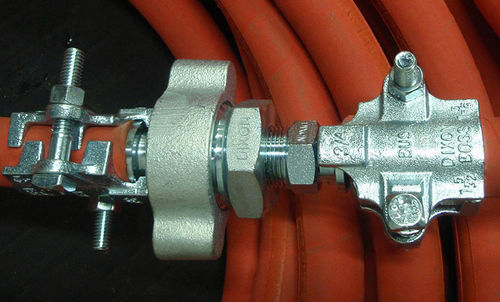

– A secure and all-purpose hose coupling solution for high-pressure and high-temperature applications, universally recommended for steam hose connections.
– This system is generally used with large bore air hoses or any size steam hoses and other demanding applications.
– It is also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas.
Features :
– Boss Couplings provide a robust connection with a focus on safety and reliability.

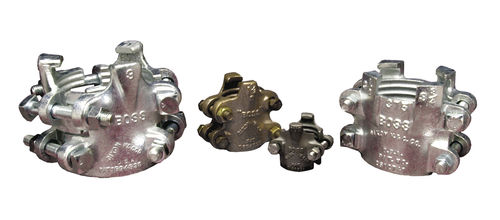

– Specialized clamps interlock with the coupling, offering a strong grip on the hose to prevent detachment during operation.
– The bolts are designed to bend under torque for secure installation and the wing nut system ensures gradual pressure release for safe disconnection.
Specifications :
-Temperature range: up to 232°C (450°F)
Dimensions :
– Available in sizes 1/4″ to 6″

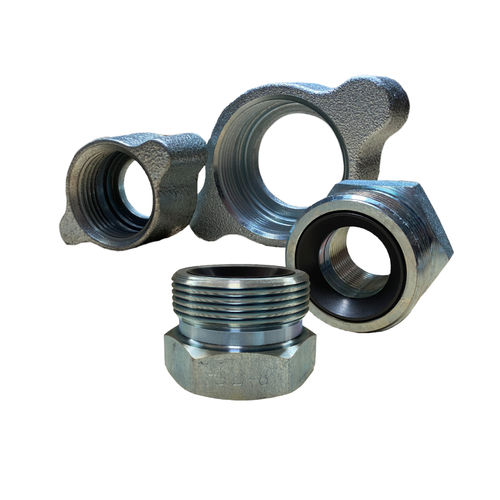

Materials :
– Stem: 1/4″ – 1″ plated steel, 1-1/4″ – 4″ plated iron, 6″ tubular steel
– Spud: 1/4″ – 1″ plated steel, 1-1/4″ – 6″ plated iron
– Wing nut: 1/4″ plated steel, 3/8″ – 6″ plated iron
توضیحات:
Applications
hydraulic, pneumatic
Attachment
quick
Gender
male, female
Other characteristics
high-pressure, high-temperature, robust
