نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

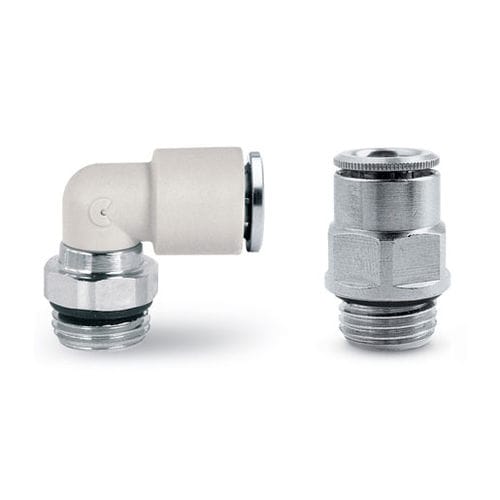

Hydraulic fitting 7000 FLUIDICS
برند:
CAMOZZI AUTOMATION
مشخصات:
Series 7000 super-rapid fittings are realized in technopolymer. Compact and lightweight, they are suitable for applications where weight can be a key factor. The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times. The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.
توضیحات:
Applications
hydraulic
Attachment
push-in
Configuration
elbow
Material
technopolymer, nickel-plated
Other characteristics
compact, corrosion-resistant, cooling
Diameter
6 mm, 8 mm, 10 mm, 12 mm, 16 mm(0.236 in, 0.315 in, 0.394 in, 0.472 in, 0.63 in)
Operating pressure
Min.: 6 bar(87.02 psi)Max.: 16 bar(232.06 psi)
