نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

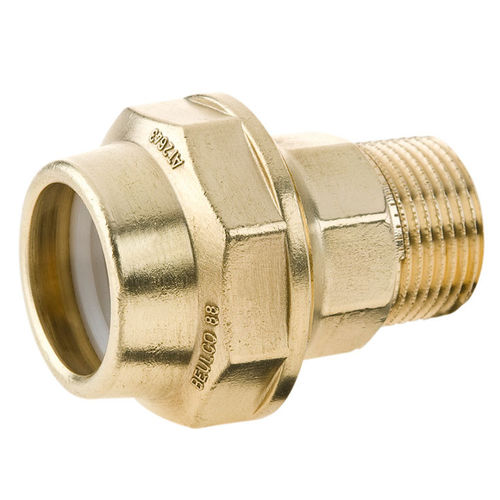

Hydraulic fitting 8801
برند:
BEULCO GmbH & Co. KG
مشخصات:
Clamping connector / screw connector without support tube for optimum grip and durability.
The product group A3 is just right for anyone who wants to work fast, cost-effective and space-saving.
The separate sealing and clamping function results in a clear division of functions. additionally
allows the pressure-dependent clamping force that adjust the pressure loads in the application individually.
The connector consists of only three components and thus allows a quick and easy
Assembly without special tools. The latest state of the art makes it possible to access a support tube
without. Thus, only one connector is required for each pipe outside diameter, pipe wall thicknesses
are no longer an issue. For use with PVC pipes, a brass clamping set is used.
توضیحات:
Applications
hydraulic
Attachment
screw-in, compression
Material
brass
Gender
male-female
Other characteristics
3-piece
Diameter
Min.: 16 mm(0.63 in)Max.: 75 mm(2.953 in)
